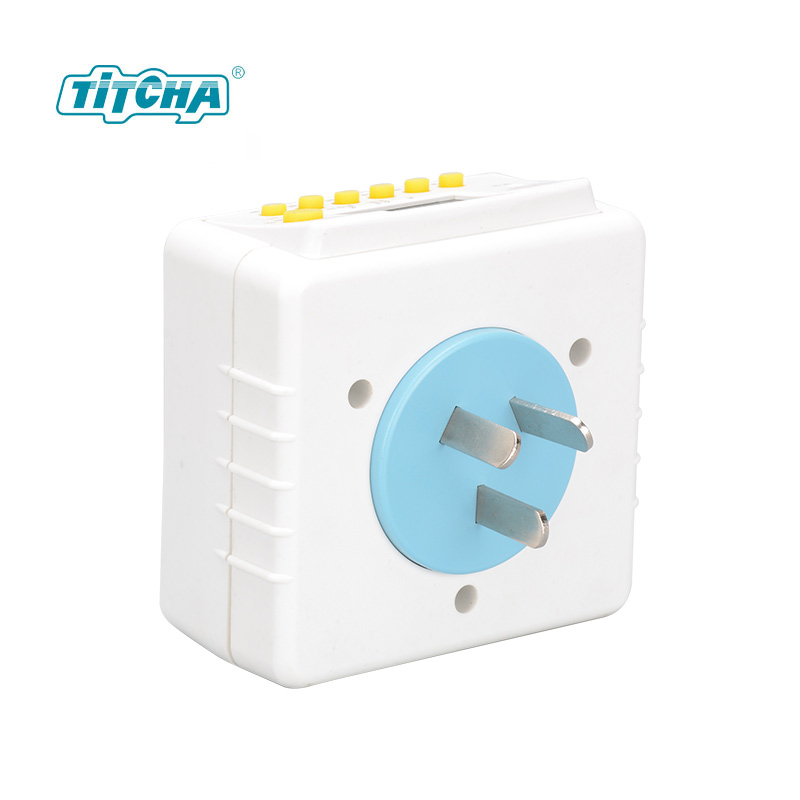

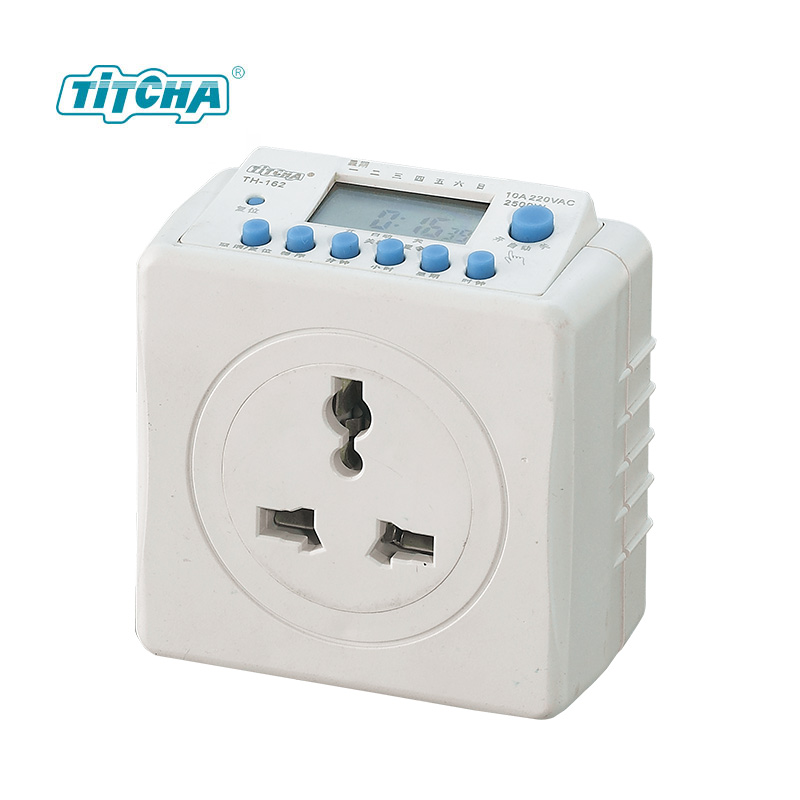

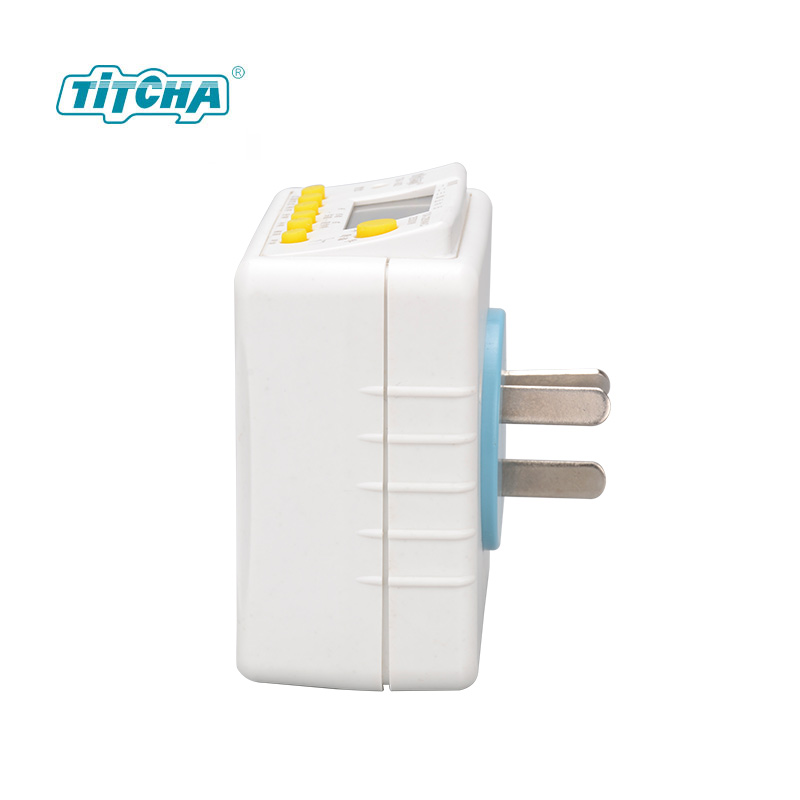

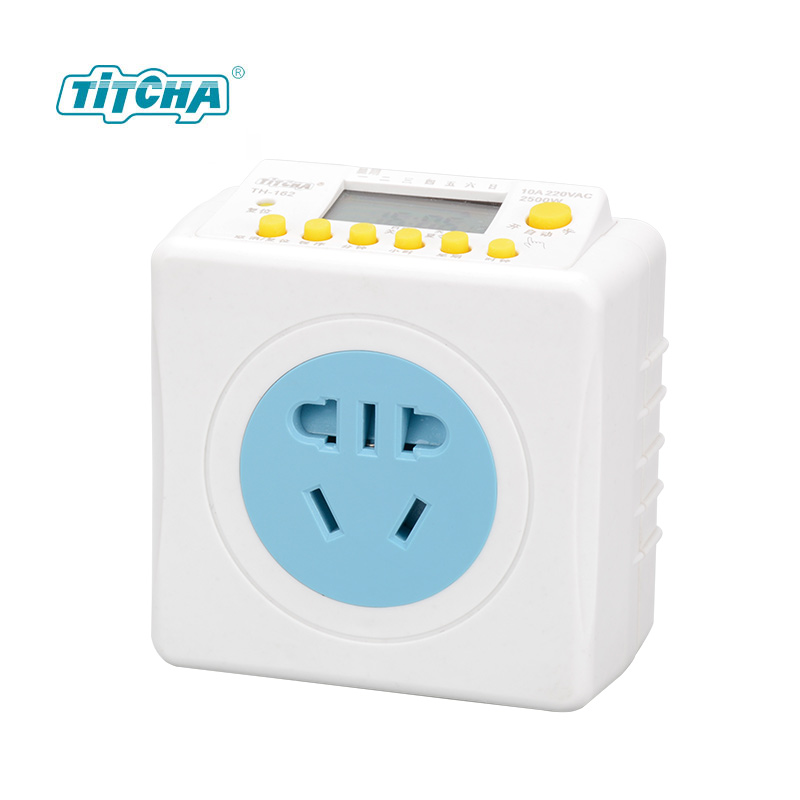

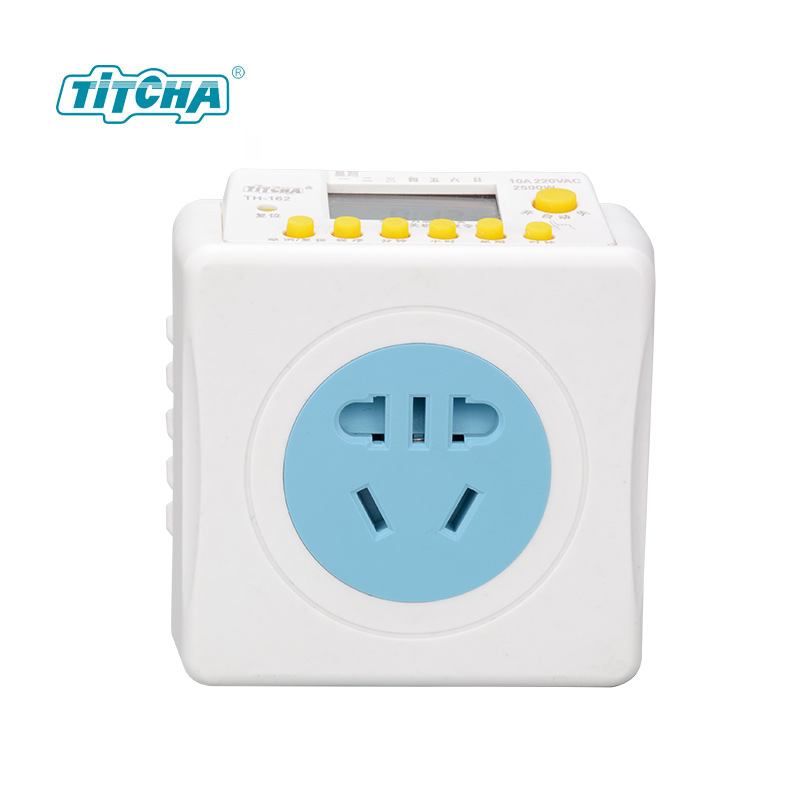

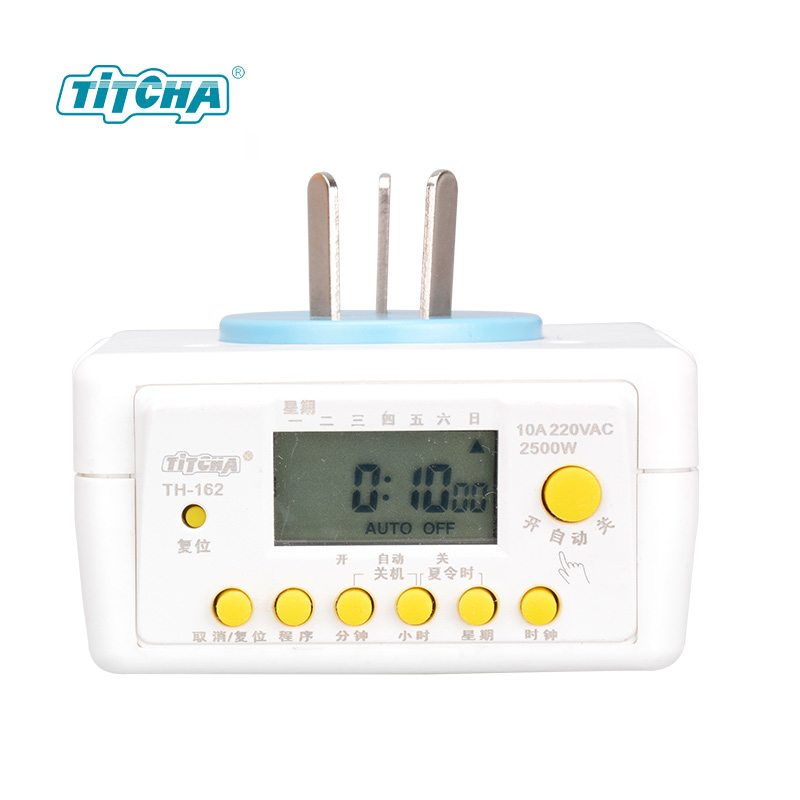

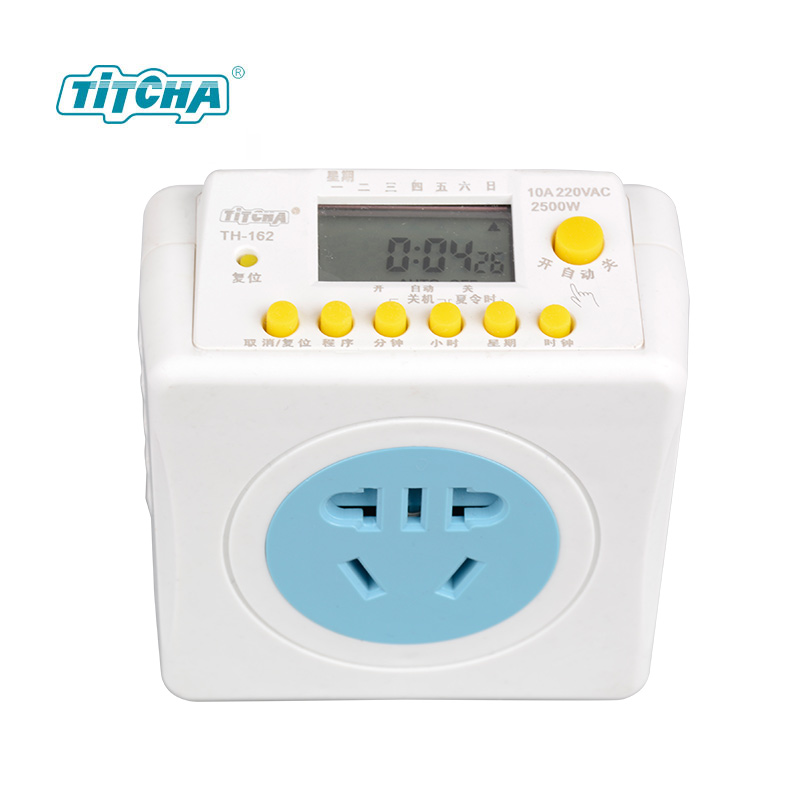

High grade small volume wide working temperature and strong extension plug socket

• Name:extension plug socket
• Theory:REED RELAY
• Usage:General Purpose
• Size:Miniature
• Protect Feature:Other
• Contact Load:High Power
• Place of Origin:CN;ZHE
• Brand Name:TITCHA
• Model Number:TH-162

digital timer plug
digital timer plug
digital timer plug
digital timer plug
digital timer plug
digital timer plug
digital timer plug

Nunction & usage
1.The daily maximum is ten group of on/off and the weekly maximm is seventy groups of on/off.
The arbitrarily setting of daily on-off program or of the gropus of on-off program is available. The minimum on-off intervals in 1min.Hand operation is available.
2.The plug-in mode avoids wiring,featuring small volume, wide working temperature and strong
Anti-interference , etc
3.It can serve in neon lamp,road lamp and water & material feeding in aquiculture, tool, switchgear cubicle and distribution case for automatical control. At family, it can serve as turning on and off lamp, TV and air conditioner by timing. Then the family will emter intelligence era.
Rated voltage:220V/50HZ
Mains voltage range:160V-240V
Resistance load:16A
Power consumption<2VA
Timing range:1min-168h
Ten groups of timing is available in the form of hand and automation.
Timing error:<±0.5s/day
Relative humidity:<95%
Time setting
Press the key of ‘CLOCK’ and then press the key of “WEEK” to determine the week.
Press the key of “HOURS’ to determine the hours and press the key of “MIN” to determine the minute. Releasing the key of “MIN” means that the timing will press repeatedly relevant Key.
Timing program setting
Seven mode of automatica on/off timing. Select following program combination is of recommendation.
From Monday to Sunday
Every day of a week
From Monday to Friday
From Saturday to Sunday
