10MA Max At 220VAC Zero-crossing Type 25A Load Current Solid State Relay

• solid state relay
• solid state relay
• solid state relay
• color:white
• Theory:Solid State Relay
• Usage:General Purpose
• Size:Subminiature
• Protect Feature:Epoxy
• Contact Load:Low Power
• Place of Origin:CN;ZHE
• Brand Name:titcha
• Model Number:JGX-25F

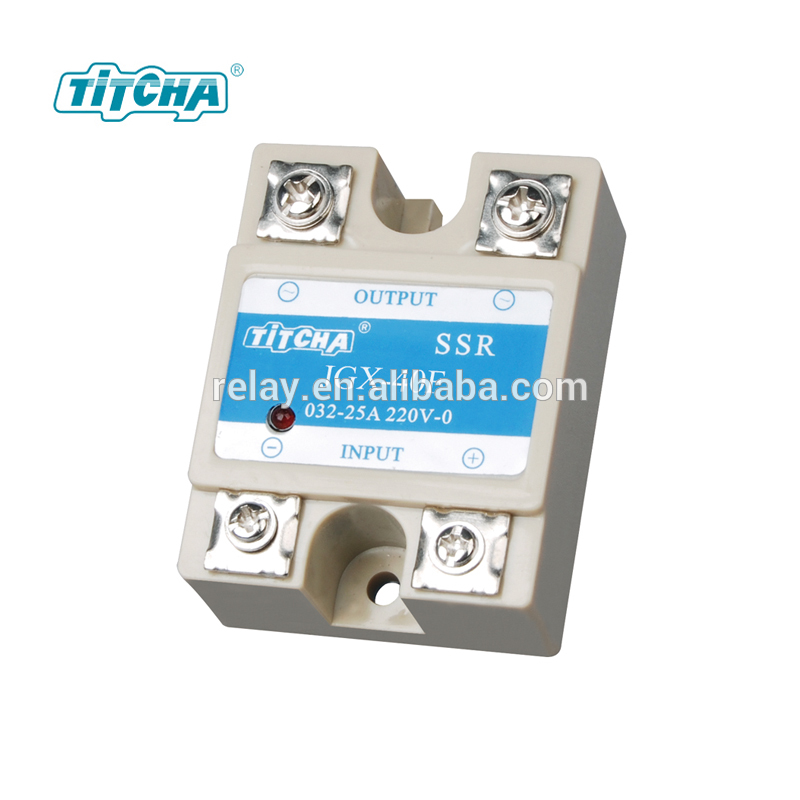

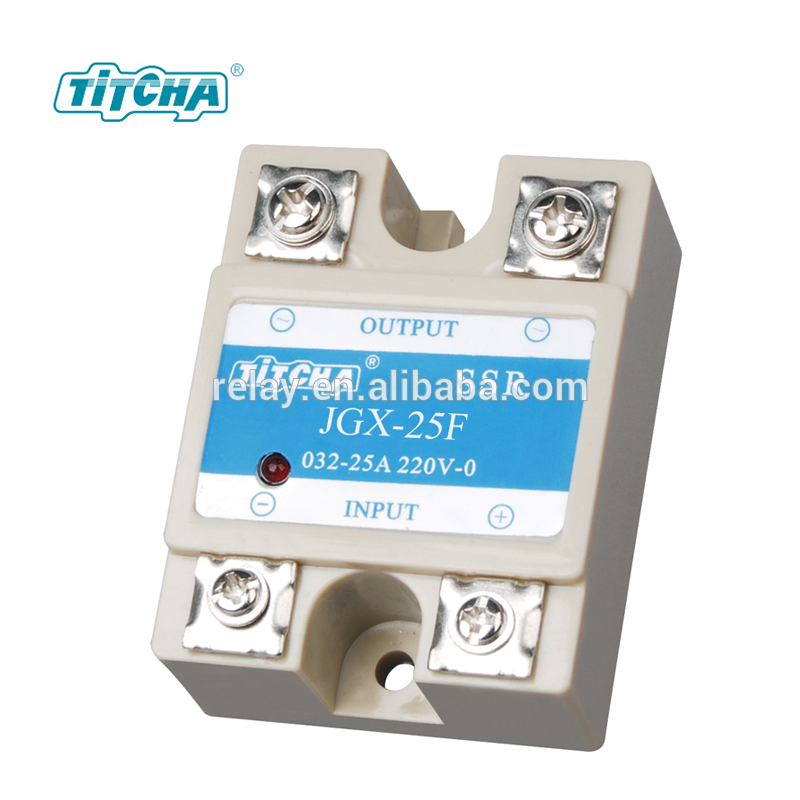

Solid State Relays JGX-25F

Size(mm): 59*45*25
On-off Time : 1ms+Load current of 0.5 cycles following
Load current: 25A
Load voltage: 25-250VAC H: 150V-450VAC
Output voltage drop:1.8Vmax
off Leakage Current: Zero-crossing type: 10MA max at 220VAC 15mA max at 380VAC
Stochastic pattern: 5mA max at 220VAC 10mA at 380VAC
Inulation resistance: 100MΩ min.(at 500VAC)
Dielectric Strength: 2000VAC 50Hz/lmin
Operating Temperature: -20-80(Non-condensing and freezing)
