Solid State Relay SSR SSR-10VA

SSR-10VA

Delivery

FOB

minimum order

1000 pieces

Supply Ability

100000.0pieces / Month

Country of Origin

Shanghai or Ningbo

Type

Quantity

Contact Now

add to cart

color:white
Theory:Solid State Relay
Usage:General Purpose
Size:Subminiature
Protect Feature:Epoxy
Contact Load:Low Power
Place of Origin:CN;ZHE
Brand Name:titcha
Model Number:SSR-10VA

solid state relay

Solid State Relay SSR SSR-10VA

Solid State Relays SSR-10VA

Size: 62.5*45*23.5
Control method: VA Solid Booster
Control voltage:External control to adjust potentiometer 470KΩ-560KΩ/2W
Load voltage:24V-380VAC H:90-480VAC
Output voltage drop:1.5Vmax
off Leakage Current:5mA max.f no built-in RC absorption circuit 1mA
Inulation resistance:100MΩ min.(at 500VAC)
Dielectric Strength:4000Vrms Input-Output 2500Vrms Input,output-Cooling plate
Operating Temperature:-20-80(Non-condensing and freezing)

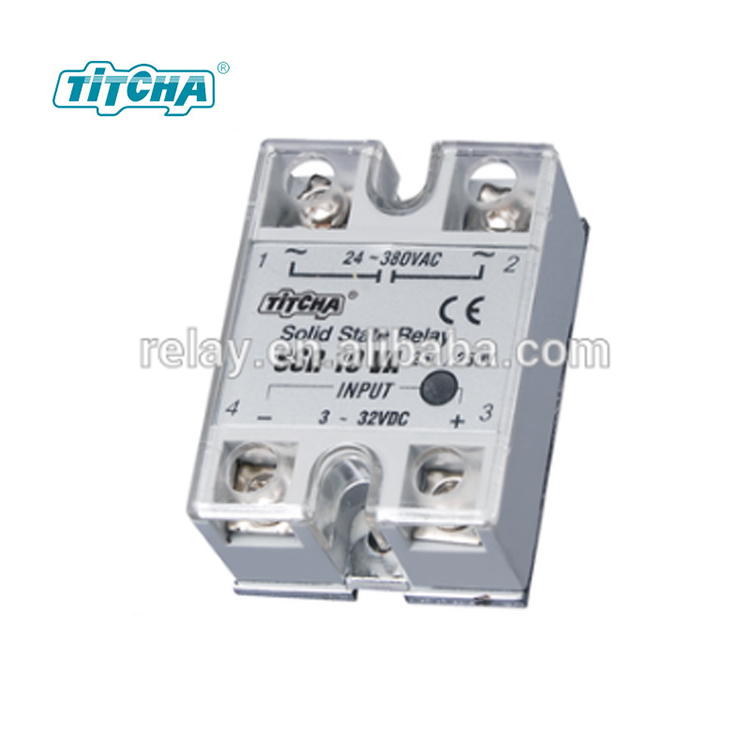

Solid State Relay SSR-10DA

Size: 62.5*45*23.5
Control method: DA AA
Control voltage:3-32VDC 80-250VAC
Load votlage:24V-380VAC H:90-480VAC
Output voltage drop:1.5Vmax
off Leakage Current:5mA max.f no built-in RC absorption circuit 1mA
Inulation resistance:100MΩ min.(at 500VAC)
Dielectric Strength:4000Vrms Input-Output 2500Vrms Input,output-Cooling plate
Operating Temperature:-20-80(Non-condensing and freezing)
