RH3B-U 11 pin 10A AC220V DC24V with/without LED general purpose relay
RH3B-UL
General purpose relay are electric switches that use electromagnetism to convert small electrical stimuli into larger currents.
Delivery
FOB
minimum order
500 pieces
Supply Ability
10000.0pieces / Month
Country of Origin
Shanghai or Ningbo
Quantity
RH3B-U 11 pin 10A AC220V DC24V with/without LED general purpose relay

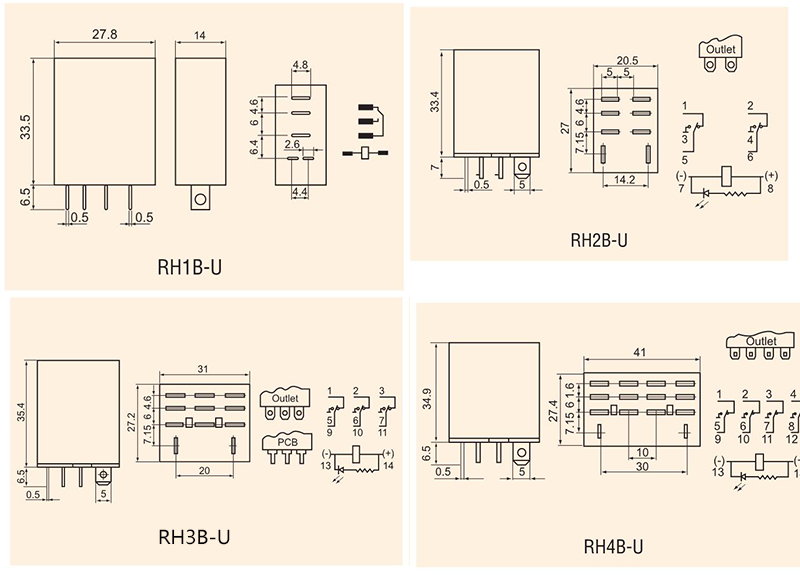

| Model | RH1B-U | RH2B-U | RH3B-U | RH4B-U |
Coil rated voltage | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V |
AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | |
| Coil rated power | DC ≤ 0.9W | DC ≤ 0.9W | DC ≤ 1.4W | DC ≤ 1.5W |
| AC ≤ 1.2VA | AC ≤ 1.2VA | AC ≤ 2.0VA | AC ≤ 2.5VA | |
Electrical Life | 10^5 OPS | 10^5 OPS | 10^5 OPS | 10^5 OPS |
Mechanical life | 10^7 OPS | 10^7 OPS | 10^7 OPS | 10^7 OPS |
Operating temperature | -40℃~70℃ | -40℃~70℃ | -40℃~65℃ | -40℃~70℃ |
Weight | ≤22g | ≤34g | ≤49g | ≤69g |
Mounting methods | Printed Circuit board Flange,outlet | Flange,outlet | Printed Circuit board Flange,outlet | Flange,outlet |
| Contacting rating | 1Z | 2Z ,2H ,2D | 3Z ,3H ,3D | 4Z ,4H ,4D |
| Contact resistance | 50 mΩ (1A 6VDC ) | 100 mΩ (1A 6VDC) | 100 mΩ (1A 6VDC ) | |
| Contact capacity | 10A 250VAC 30VDC | 10A 250VAC 30VDC | 10A 250VAC 30VDC | 10A 250VAC 30VDC |
| Insulation resistance | 500 MΩ 500VDC | |||
| Dialectric strength | BCC ≥ 1500VAC 1min | |||
| BOC ≥ 1000VAC 1min | ||||
| Operate time | 25ms/15ms | |||
