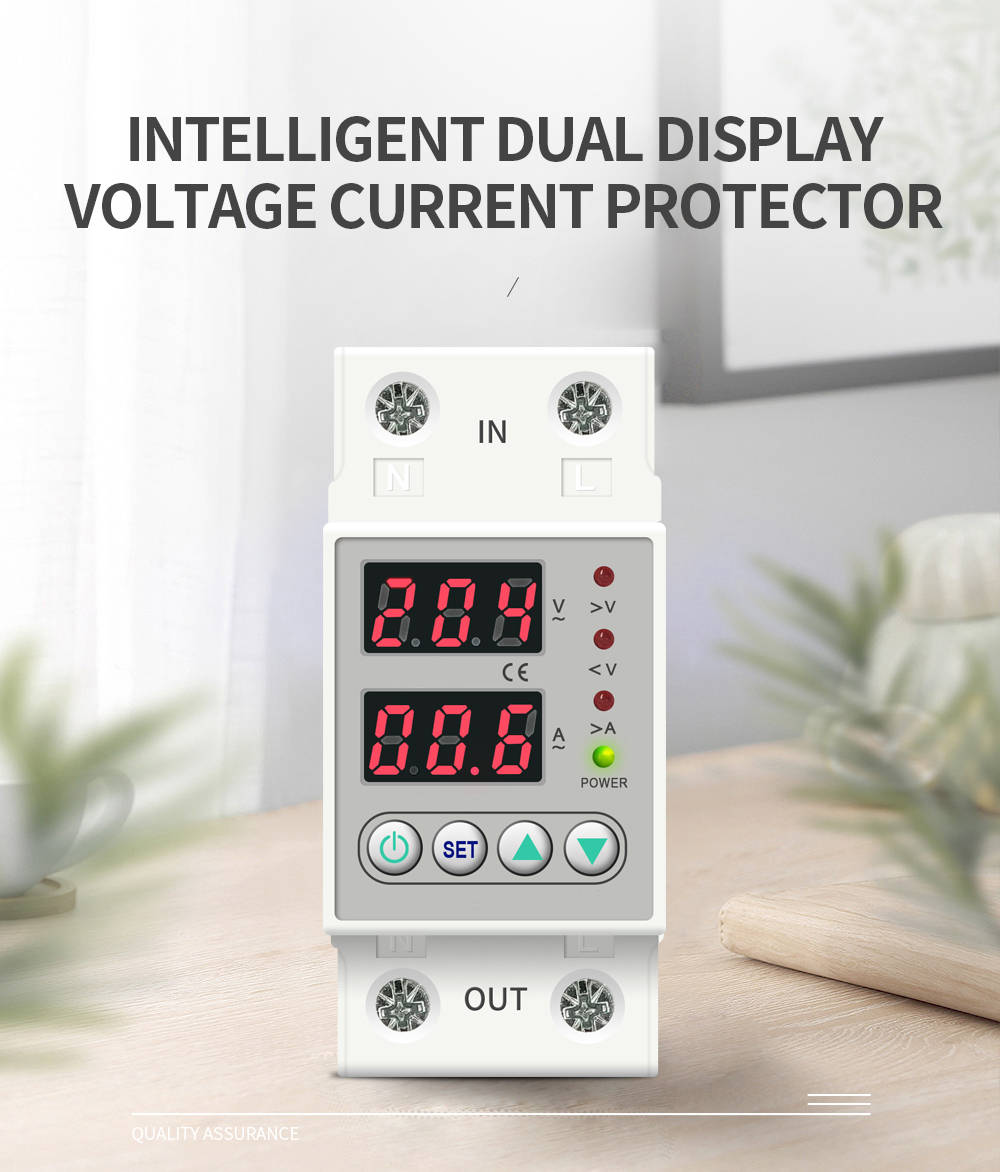

THVA-63 Single phase adjustable over and under voltage over current with voltage display protector

THVA-63

Single phase

Functions:
1.Over voltage :230-300V
2.Under voltage :140V--210V
3.Over current : 1-63A

Delivery

FOB

minimum order

100 pieces

Supply Ability

3000pieces / Month

Country of Origin

China

Stock Time

15Day

Quantity

Contact Now

add to cart

Over under voltage protector Over under voltage protector

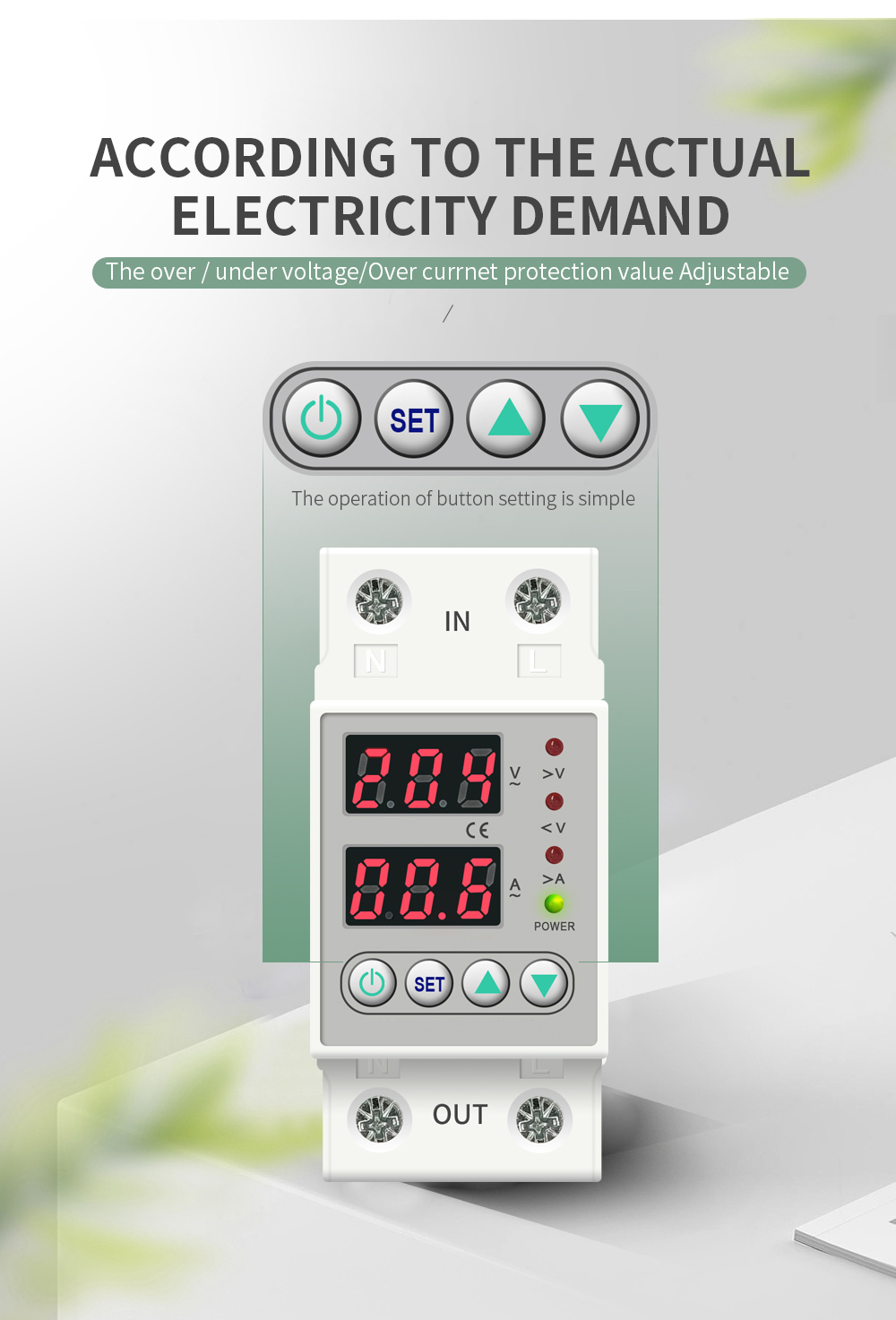

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery

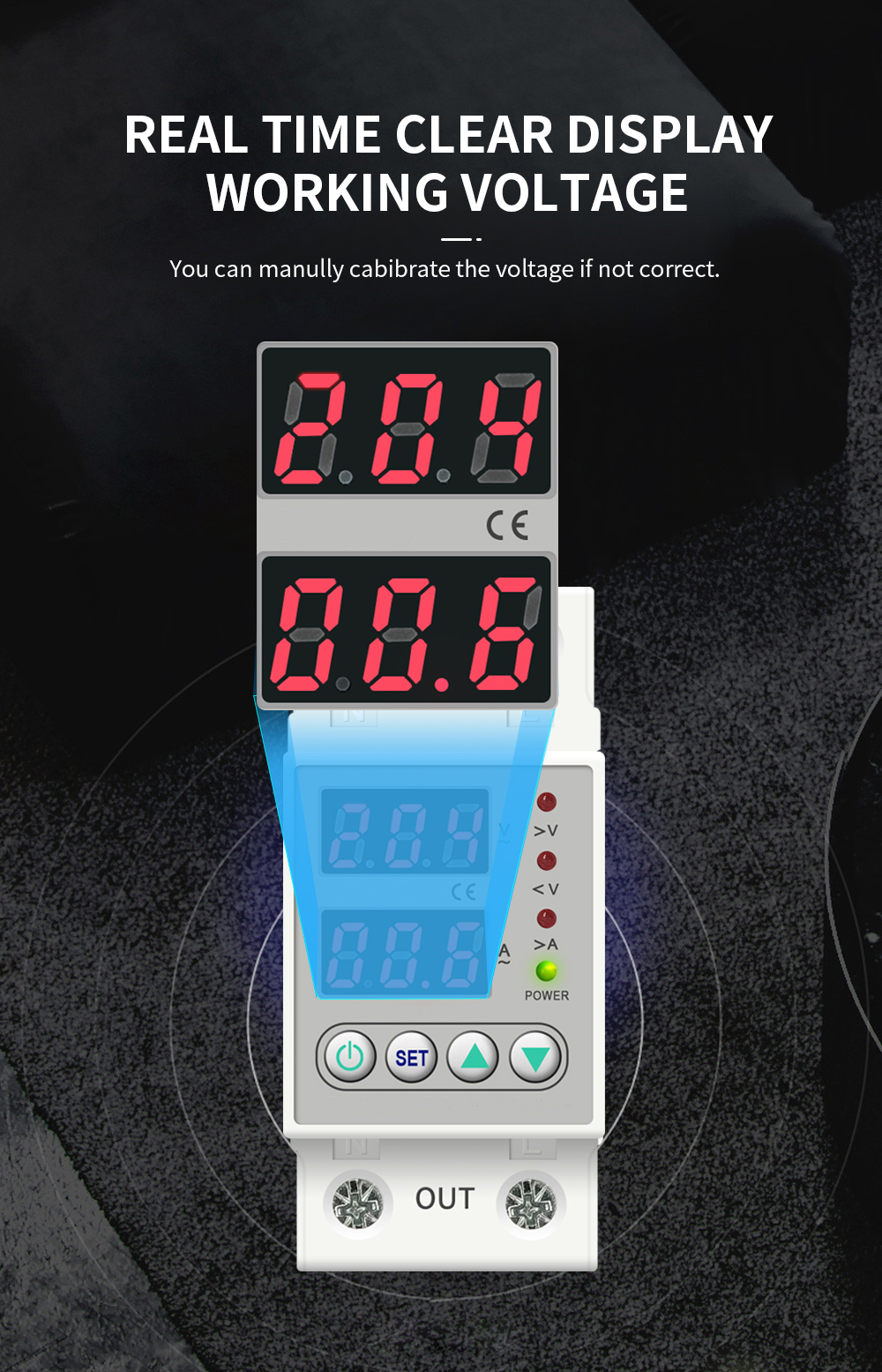

5.Voltage display(voltage measurement)
6.Current display (current measurement)

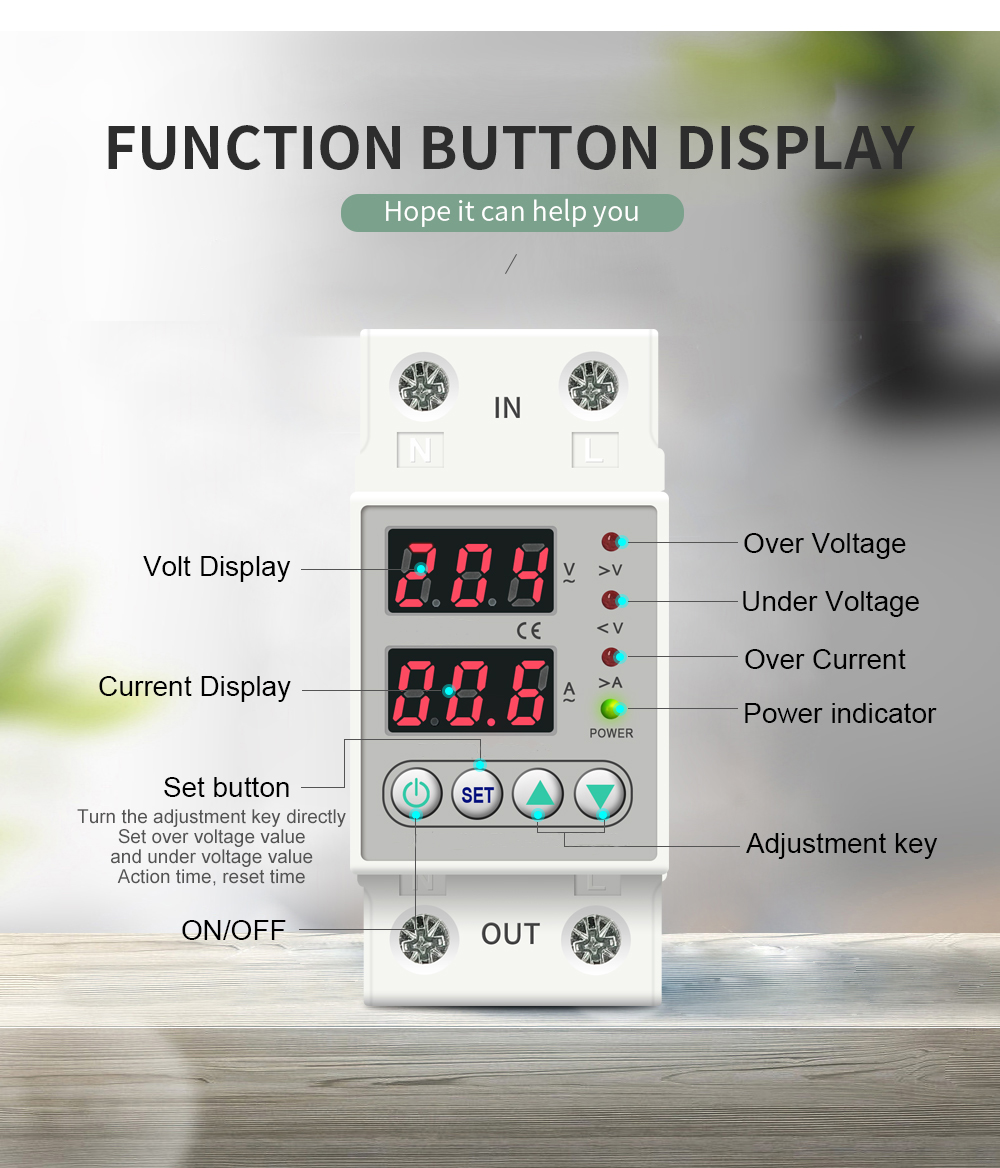

7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S

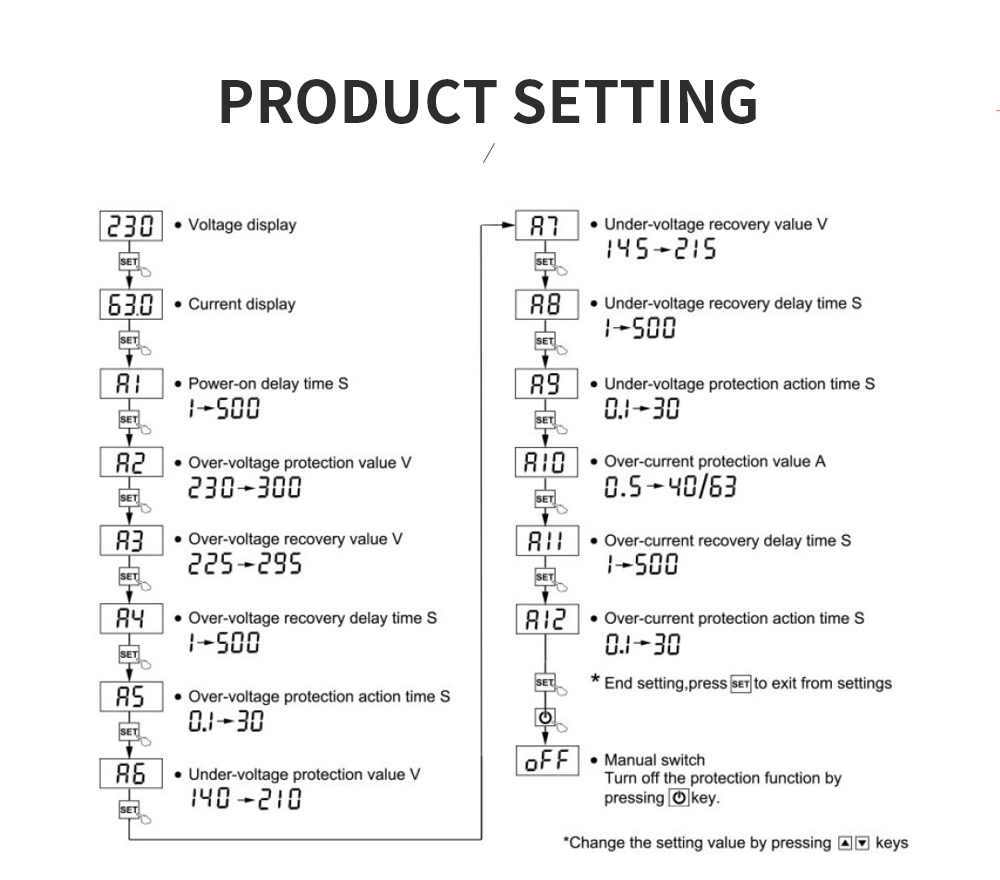

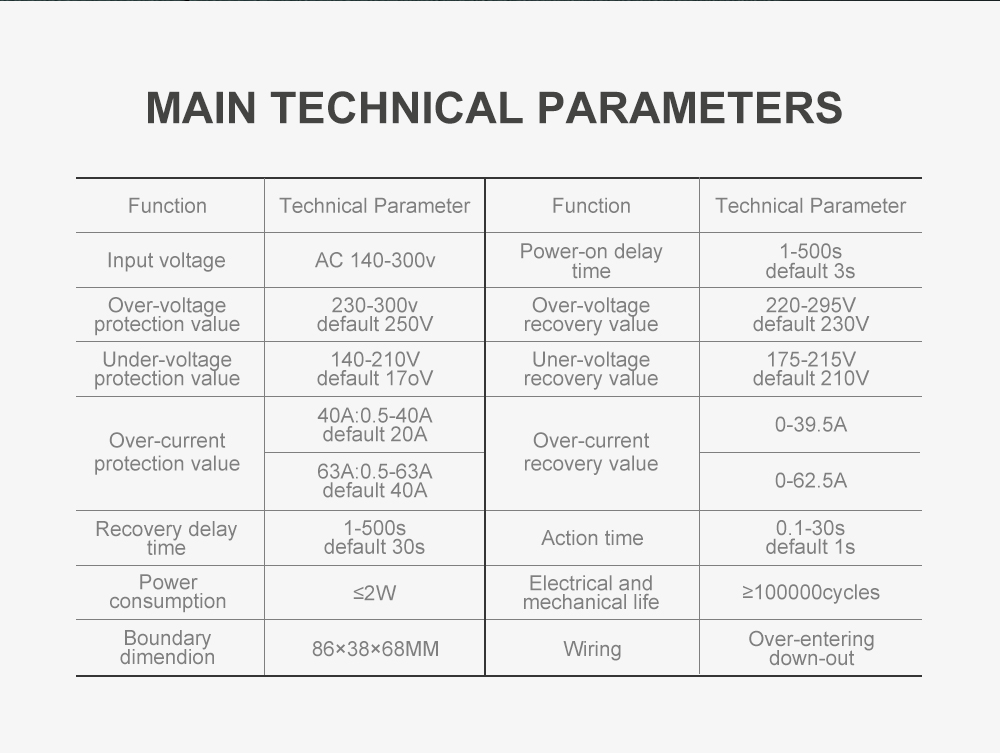

Product Parameters:

Model number	THVA-63
Power supply	230VAC 50/60Hz
Max.Loading power	230VAC 50/60Hz
Over-voltage protection value range	230V~300~OFF(default:270V)
Over-voltage recovery voltage range	225V--295V(default:250V)
Over-voltage protection action time	0.1s~30s(default value:0.5s)
Over-voltage recovery delay time	1s~500s(default:30s)
Under-voltage protection value range	140V--210V --OFF(default:170V)
Under-voltage recovery voltage range	145V--215V (default:190V)
Under-voltage protection action time	0.1s~30s(default:0.5s)
Under-voltage recovery delay time	1s~500s(default:30s)
Over-current adjustment range	1-40A (default:20A)1-63A (default:40A)
Over-current action range	0.1~30 second (default:0.5s)
Over-currentrecovery delay time	1s~500s(default:30s)
Power-on delay time	1s~500s(default:10s)
Power consumption	<2W
Electric machinery life	100,000 times

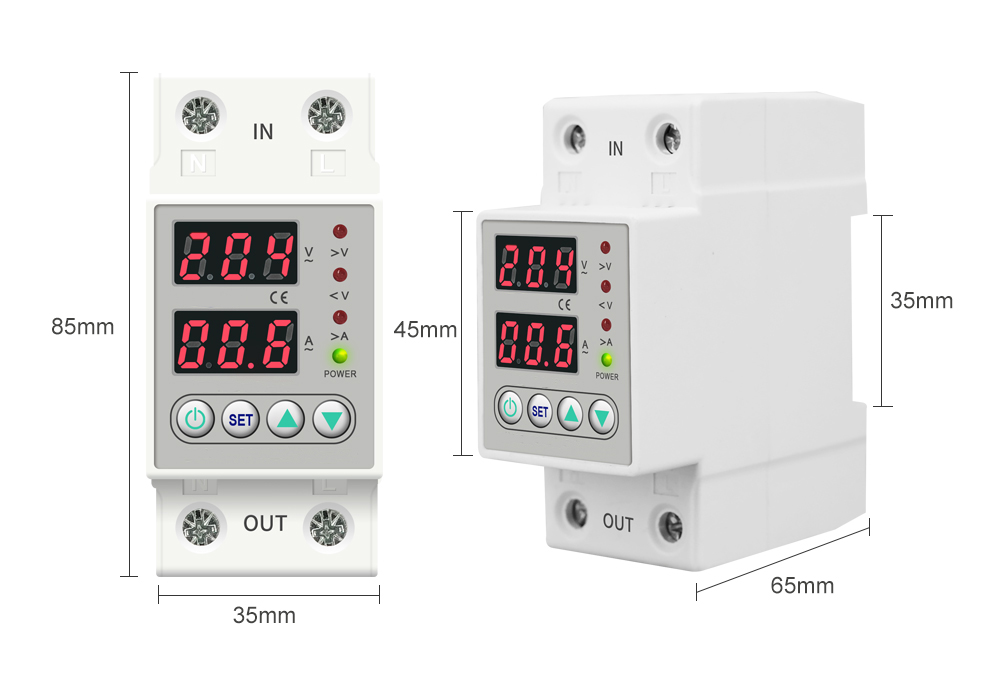

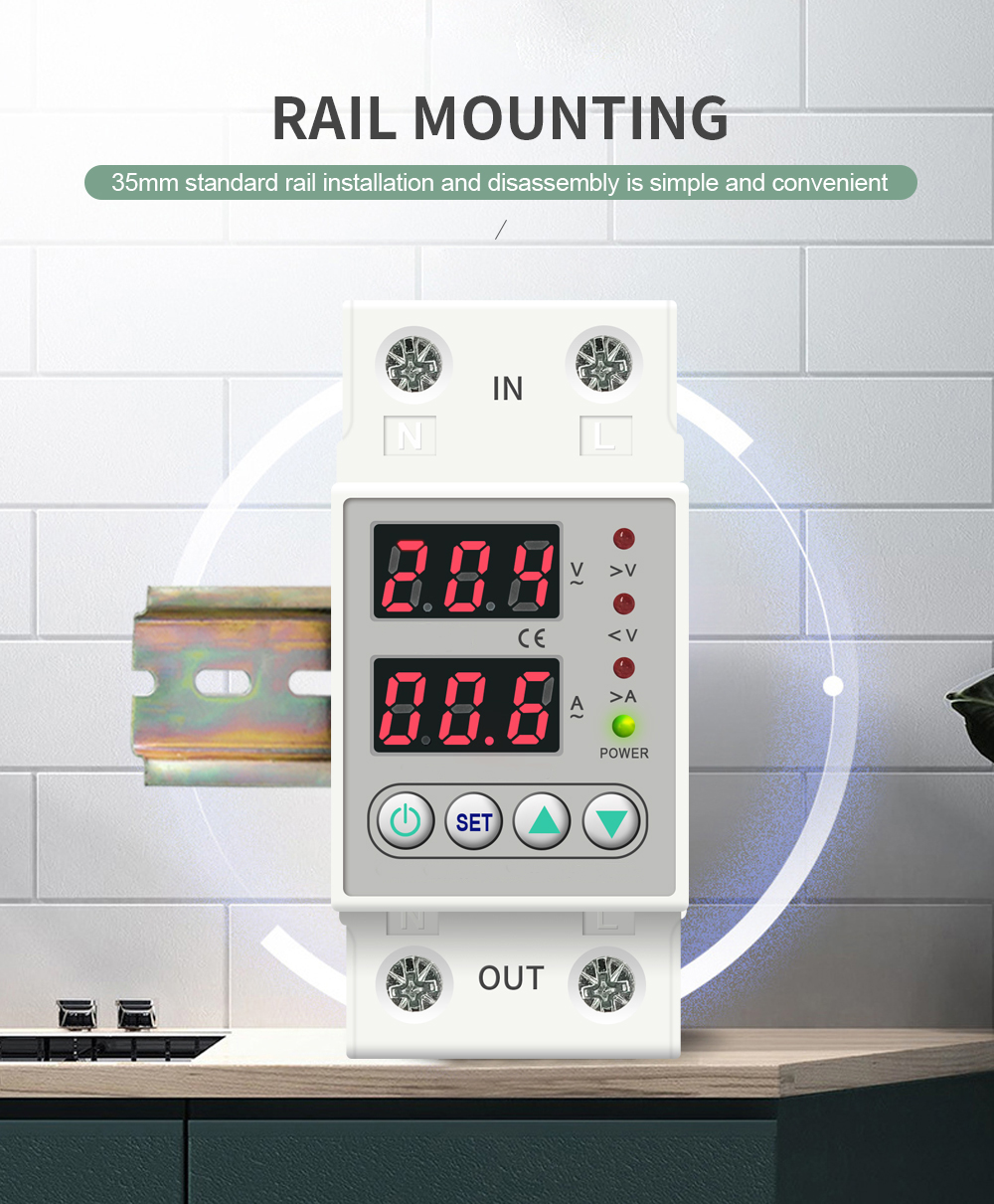

Installation	35mm DIN rail
