THT8-ST Delay on Motor Star Delta Timer Soft starter AC230V 415V AC/DC12V-240V Delta Relay Motor Starter

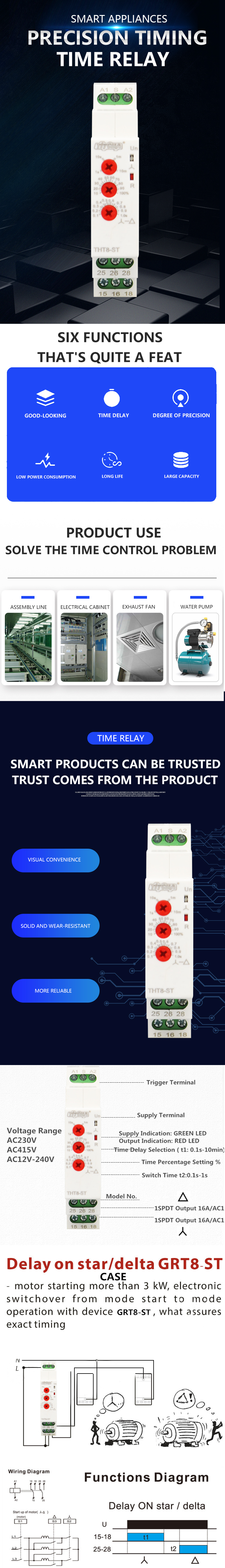

****This is a time relay for delay on starting motor star triangle, to protect motor. It does not drive motor directly. Relay need connect with ac contactor, then ac contactor connect with motor to control.
General
Applications
-Designated for delay ON of motors star delta.
Function Features
-Time t1 (star) :
time scale 0.1 s - 10min devided into 4 time ranges
rough time setting by rotary switch.
-Time t2 (delay) :
time scale 0.1 s - 1 s
time setting by potentiometer
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
****This is a time relay for delay on starting motor star triangle, to protect motor. It does not drive motor directly. Relay need connect with ac contactor, then ac contactor connect with motor to control.
General
Applications
-Designated for delay ON of motors star delta.
Function Features
-Time t1 (star) :
time scale 0.1 s - 10min devided into 4 time ranges
rough time setting by rotary switch.
-Time t2 (delay) :
time scale 0.1 s - 1 s
time setting by potentiometer
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
Technical parameters
| Technical parameters | THT8-ST | |
| Function | Delay ON star/delta | |
| Supply terminals | A1-A2 | |
| Voltage range | AC/DC12-240V(50-60Hz) | |
| Burden | AC0.7-3VA/DC0.5-1.7W | |
| Voltage range | AC230V(50-60Hz) | |
| Power input | AC max.12VA/1.3W | AC max.12VA/1.9W |
| Supply voltage tolerance | -15%;+10% | |
| Supply indication | green LED | |
| Time ranges | Range of time delay t1:0.1 s-10 min,Switch time t2:0.1s-1s | |
| Time setting | potentionmeter | |
| Time deviation | 5%-mechanical setting | |
| Repeat accuracy | 0.2%-set value stability | |
| Temperature coecient | 0.05%/C ,at=20C (0.05%F,at=68F) | |
| Output | 2XSPDT | |
| Current rating | 16A/AC1 | |
| Switching voltage | 250VAC/24VDC | |
| Min.breaking capacity DC | 500mW | |
| Output indication | red LED | |
| Mechanical life | 1×10^7 | |
| Electricallife(AC1) | 1×10^5 | |
| Reset time | max.200ms | |
| Operating temperature | -20Cto+55C(-4F to 131F) | |
| Storage temperature | -35℃to+75℃(-22F to 158F) | |
| Mounting/DIN rail | Dinrail EN/IEC 60715 | |
| Protection degree | IP40 for front panel/lP20 terminals | |
| Operating position | any | |
| Overvoltage cathegory | III | |
| Pollution degree | 2 | |
| Max.cable size(mm) | solidwiremax.1×2.5or2×1.5/with sleeve max,1×2.5(AWG 12) | |

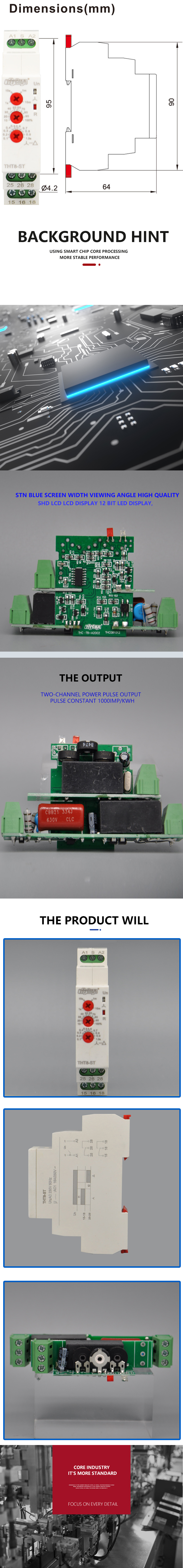

| Dimensions | 90×18×64mm | |
| Weight | W240-82g,A230-80g | |
| Standards | IEC/EN61812-1,IEC/EN61010-1 | |
