THT8-M Din Rail Type Multifunction Time Relay AC220V OR DC12V DC24V DC240V with 10 Functions Timer 16A SPDT
THT8-M2
Delivery
FOB
minimum order
100 pieces
Quantity
THT8-M Din Rail Type Multifunction Time Relay AC220V OR DC12V DC24V DC240V with 10 Functions Timer 16A SPDT
General
Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage).
- THT8-M Multifunction Time Relay
- Voltage Range: AC230V or AC/DC12-240V
- Output: 16A 1SPDT (THT8-M1) or 2SPDT (THT8-M2)

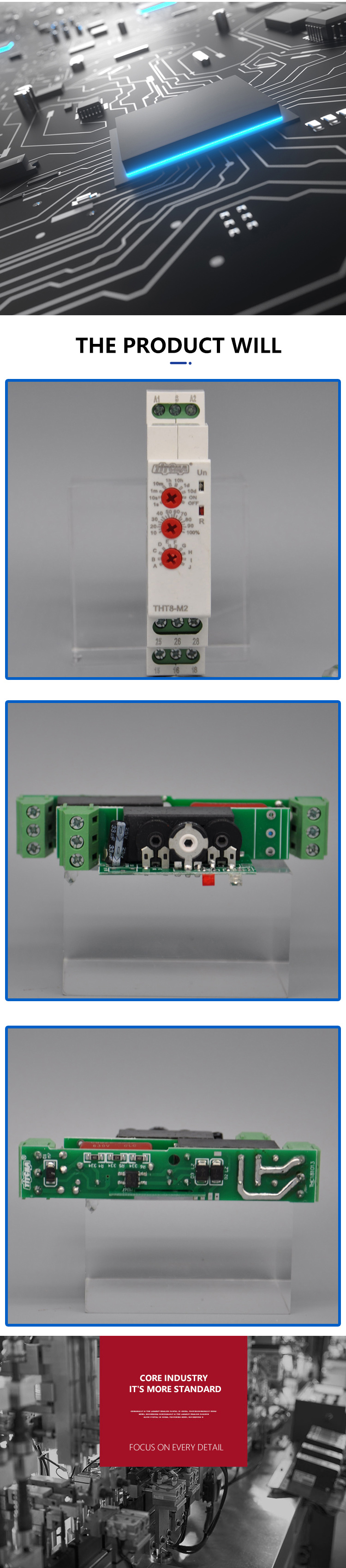

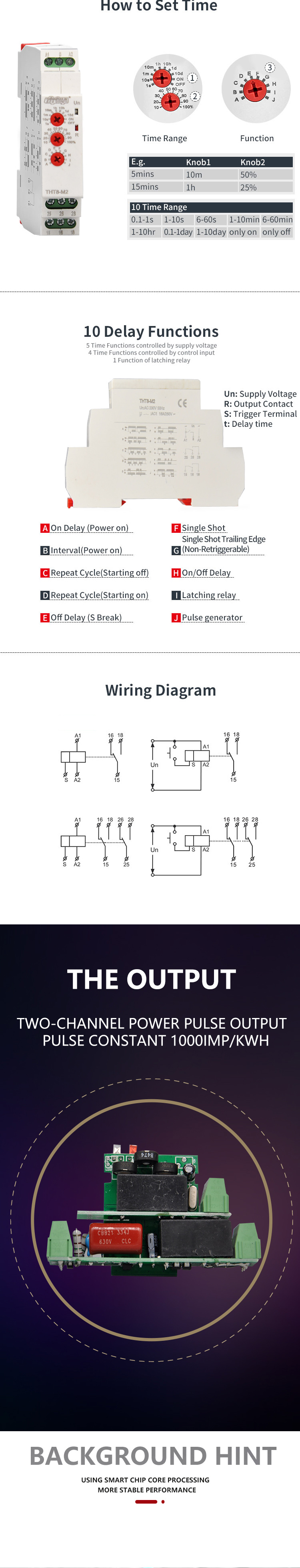

-10 Functions:
5 time functions controlled by supply voltage ( A B C D J )
4 time functions controlled by control input ( E F G H )
1 function of latching relay ( I )
-Time scale 0.1 s - 10 days divided into 10 ranges, setting by Potentionmeter.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only on, only off
- 1-MODULE 18mm, DIN rail mounting, convenient install.

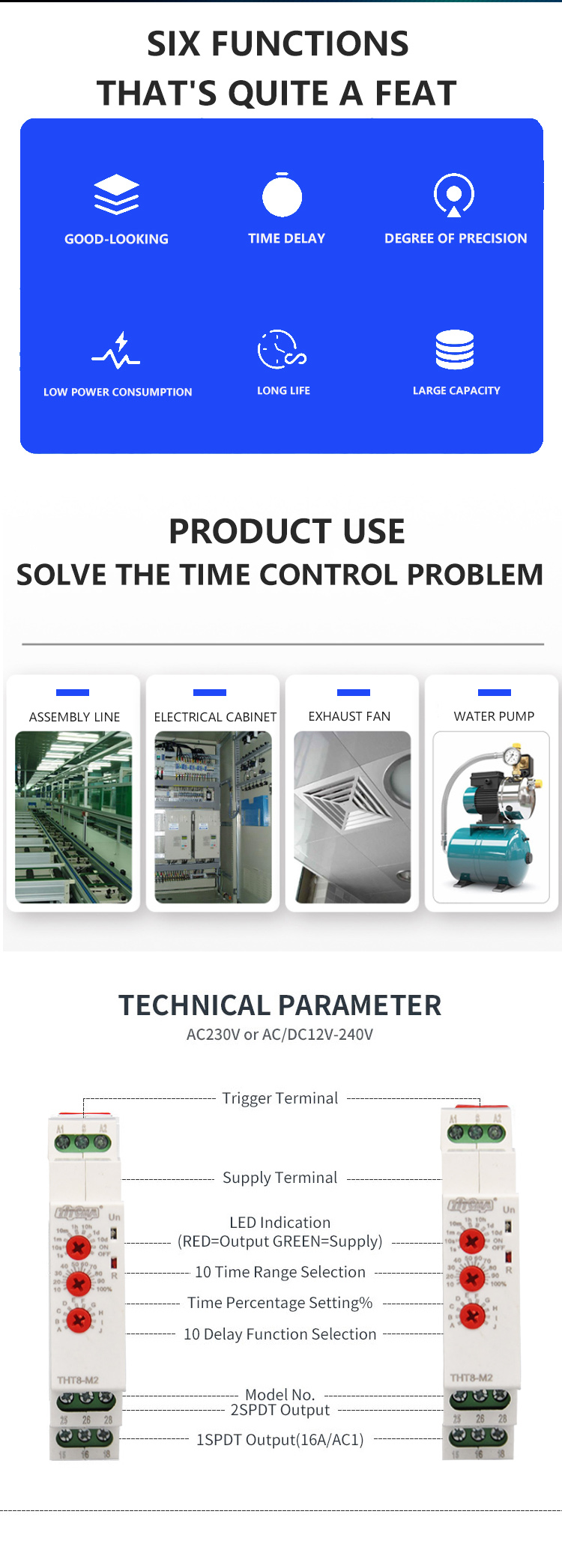

Technical parameters
| Technical parameters | THT8-M1 | THT8-M2 |
| Function | A,B,C.D,E,F,G,H,I,J | |
| Supply terminals | A1-A2 | |
| Voltage range | AC/DC12-240V(50-60Hz) | |
| Burden | AC0.7-3VA/DC0.5-1.7W | |
| Voltage range | AC230V(50-60Hz) | |
| Power input | ACmax.12VA/1.3W | AC max.12VA/1.9W |
| Supply voltage tolerance | -15%;+10% | |
| Supply indication | green LED | |
| Time ranges | 0.1s-10days,ON,OFF | |
| Time setting | potentionmeter | |
| Time deviation | 5%-mechanical setting | |
| Repeat accuracy | 0.2%-set value stability | |
| Temperature coecient | 0.05%/C ,at=20C (0.05%F,at=68F) | |
| Output | 1XSPDT | 2XSPDT |
| Current rating | 16A/AC1 | |
| Switching voltage | 250VAC/24VDC | |
| Min.breaking capacity DC | 500mW | |
| Output indication | redLED | |
| Mechanical life | 1×10^7 | |
| Electricallife(AC1) | 1×10^5 | |
| Reset time | max.200ms | |
| Operating temperature | -20Cto+55C(-4Fto131F) | |
| Storage temperature | -35℃to+75℃(-22Fto158F) | |
| Mounting/DIN rail | Dinrail EN/IEC 60715 | |
| Protection degree | IP40 for front panel/lP20 terminals | |
| Operating position | any | |
| Overvoltage cathegory | III | |
| Pollution degree | 2 | |
| Max.cable size(mm) | solidwiremax.1×2.5or2×1.5/with sleeve max,1×2.5(AWG 12) | |
| Dimensions | 90×18×64mm | |
| Weight | 1×SPDT:W240-62g,A230-60g | |
| 2×SPDT:W240-82g,A230-81g | ||
| Standards | IEC/EN61812-1,IEC/EN61010-1 | |
