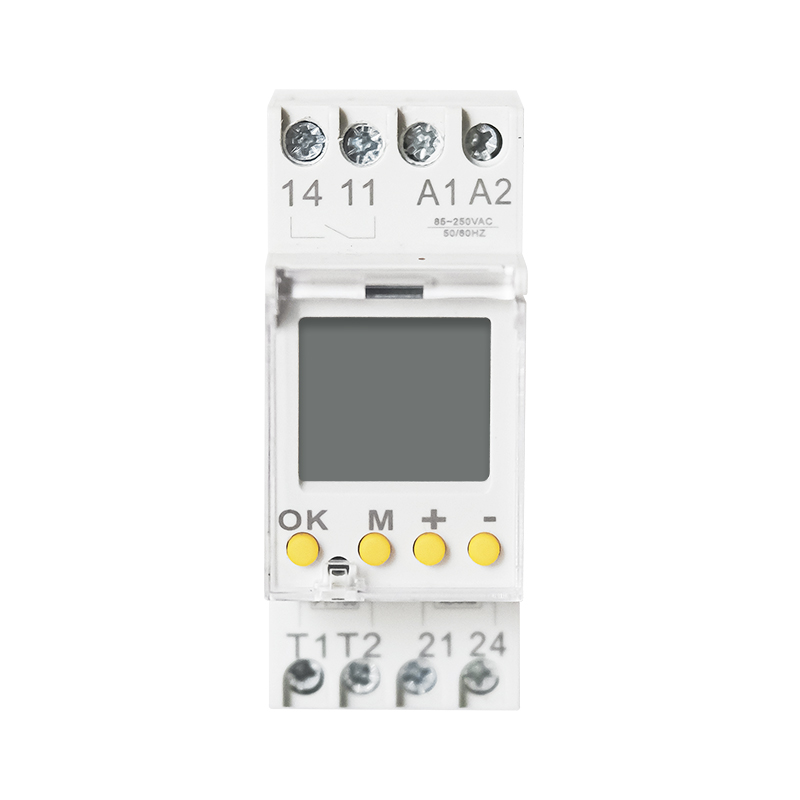

TH-W Din Rail Thermostat with Sensor -25~130℃ Convenient 1 Way Relay Output Temperature Alarm Controller Output 16A/250VAC
TH-W
A Temperature Controller is a device that is used to control a heater or other equipment by comparing a sensor signal with a set point and performing calculations according to the deviation between those values.
Delivery
FOB
Quantity
 | Item code | TH-W |
Measurement range | -25-130 ℃ | |
Sensor type | Thermistor: PT100 CU50 | |
Working voltage | 100-250VDC/85V -250VAC | |
Output mode | relay. 1 sets of contacts (16A) | |

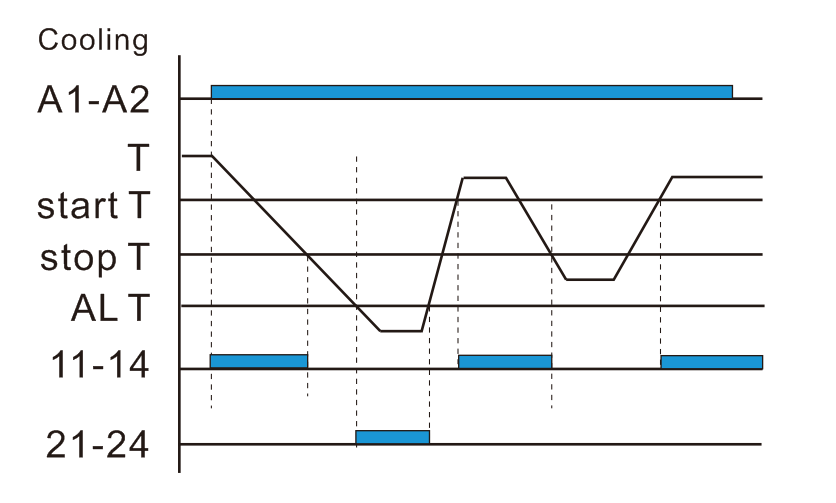

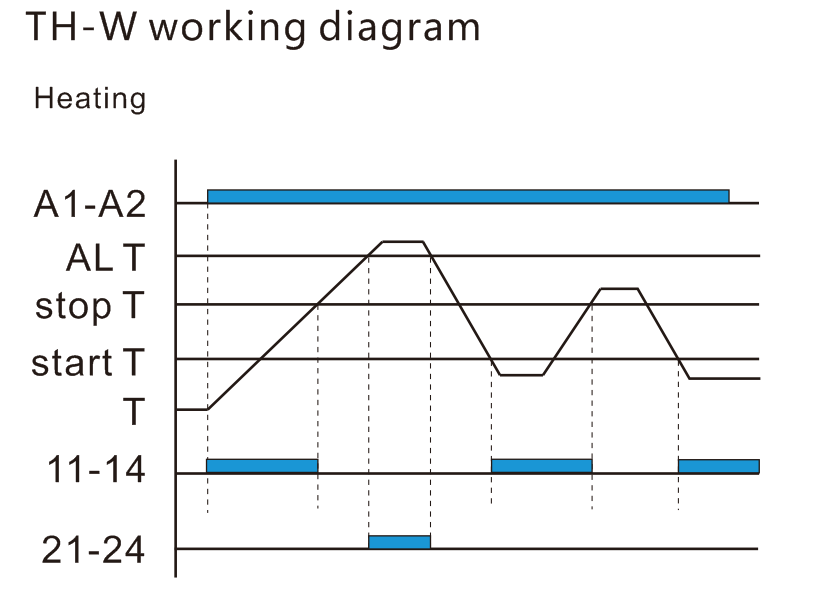

Working mode: | Heating and cooling | |
Display | LCD screen |

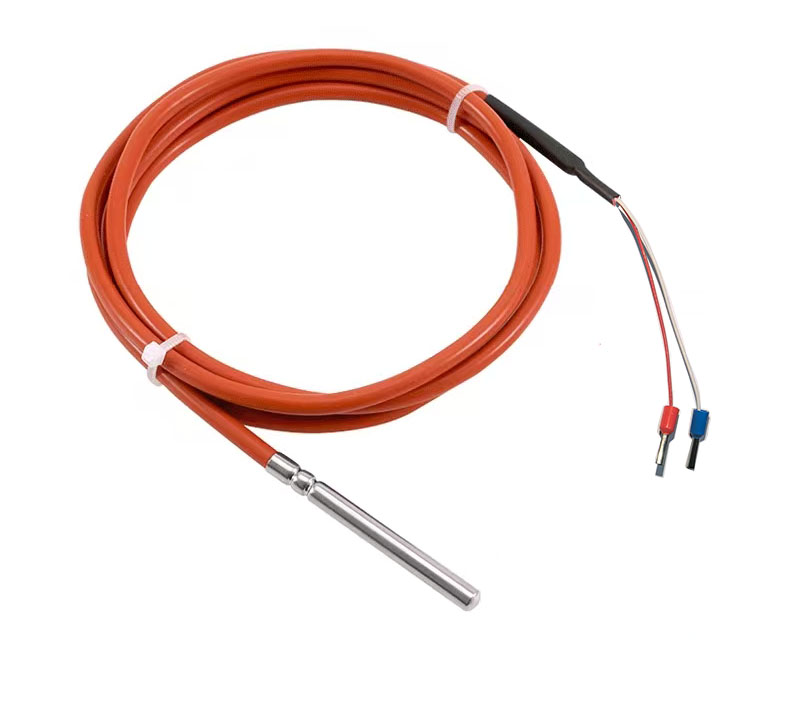

 | Item code | Pt100 |
Measurement range | -60-260 ℃ | |
Length | 1m - can be customized | |
Probe size | Φ6*50mm -can be customized | |
Product Features | Silicone shielded wire Waterproof and oil resistant Imported chips have sensitive response |
