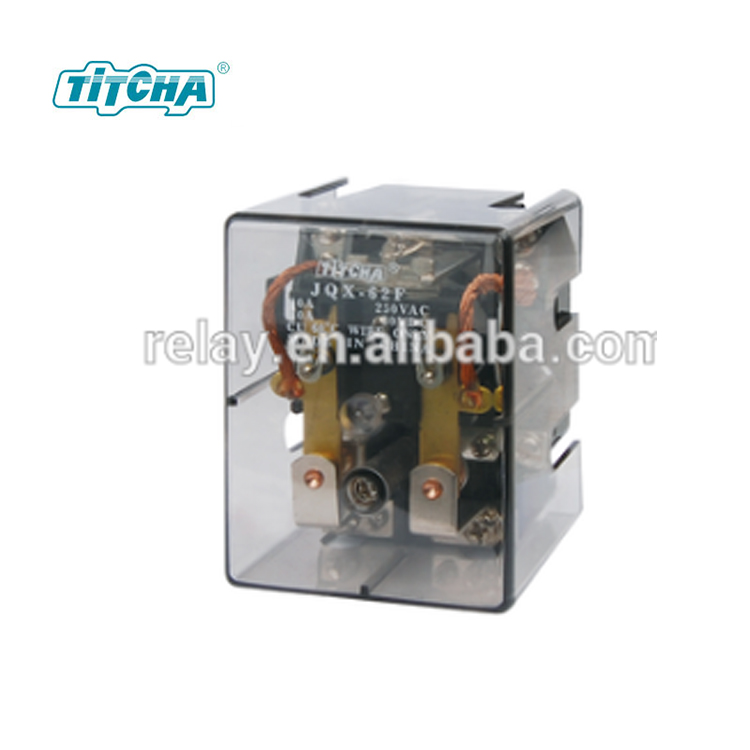

JQX-62F-2Z power relay JQX-62F-2Z (80A) JQX-62F-1Z (120A)
JQX-62F-2Z
Delivery
FOB
minimum order
100 pieces
Supply Ability
100000.0pieces / Month
Country of Origin
Shanghai or Ningbo
Type
Quantity
- JQX-62F-2Z (80A) JQX-62F-1Z (120A):Power relay,large power relay, electromagnetic relay,big power relay
- Theory:Electromagnetic Relay
- Usage:General Purpose
- Size:Subminiature
- Protect Feature:Epoxy
- Contact Load:High Power
- Place of Origin:CN;ZHE
- Brand Name:titcha
- Model Number:JQX-62F-2Z
power relay JQX-62F-2Z
large power relay, electromagnetic relay,big power relay power relay JQX-62F-2Z
Size(mm):84×68.2×65.5
Tirminal layout:2Z
Contact capacity: 80A 28VDC/80A 220VAC
Contact resistance:≤50mΩ
Inulation resistance:≥1000MΩ
Dielectric strength: BOC 2200VAC/BCC 2200VAC
Model | JQX-62F-1Z | JQC-62F-2Z | G7L-2P-TUBJ | |
Coil nominal voltage | DC 6 to 220V | DC 6 to 220V | DC 6 to 24V | |
AC 6 to 380V | AC 6 to 380V | AC 6 to 220V | ||
Coil nominal power | DC≤3.3W | DC≤4W | DC≤2.0W | |
AC≤5VA | AC≤6VA | |||
Electrical life | 105OPS | 105OPS | 105OPS | |
Mechanical life | 106OPS | 106OPS | 106OPS | |
Operating temperature | -40~+40 | -40~+40 | -45~+70 | |
Weight | ≤210g | ≤340g | ≤100g | |
Mounting methods | Scfrew Mounting | Scfrew Mounting | Outlet |
