Power relay JQX-38F-2C(A)/(B) Silver contact top quality 2CO
JQX-38F
Relays are electric switches that use electromagnetism to convert small electrical stimuli into larger currents.
Delivery
FOB
minimum order
1000 pieces
Supply Ability
100000.0pieces / Month
Country of Origin
Shanghai or Ningbo
Type
Quantity
- JQX-38F-2C(A)/(B):Power relay,large power relay, electromagnetic relay,big power relay
- Current:40A
- Theory:Electromagnetic Relay
- Usage:General Purpose
- Size:Miniature
- Protect Feature:Sealed
- Contact Load:High Power
- Place of Origin:CN;ZHE
- Brand Name:TITCHA
- Model Number:JQX-38F
Power relay
Power relay
Power relay
Power relay
Power relay
Power relay
Power relay

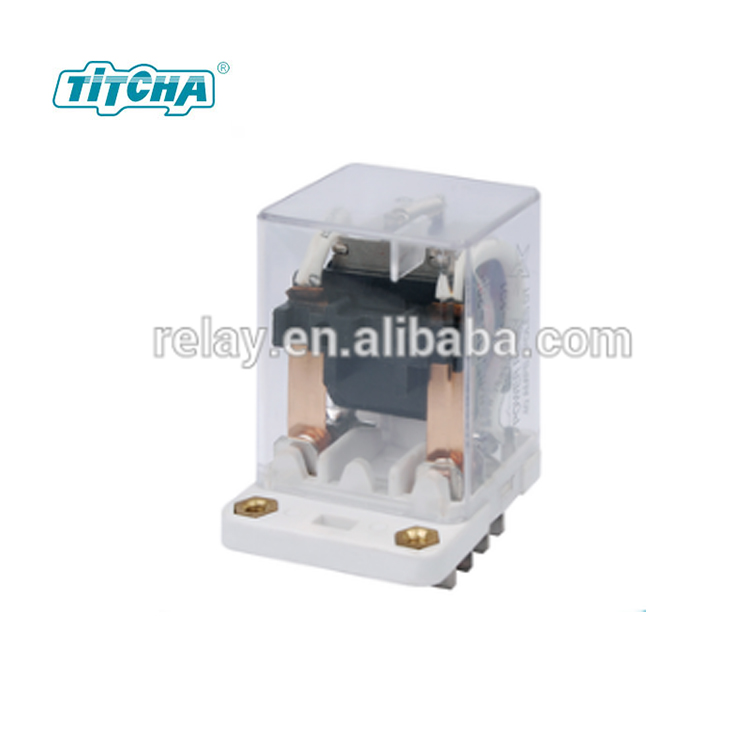

Power relay JQX-38F-2C(A)/(B)
Size(mm ):42.2×37.6×55.3
Tirminal layout:2Z,2H,3Z,3H
Contact capacity: 30A 28VDC/300A 220VAC
Contact resistance:≤50mΩ
Inulation resistance:≥1000MΩ
Dielectric strength: BOC 1000VAC/BCC 1500VAC
Model | JQX-15F(T90) | JOX-16F(T91) | JQX-30F-2C | JQC-38F-2C | JQX-40F-1Z | JQX-40F-2Z |
Coil nominal voltage | DC 3 to 110V | DC 3 to 110V | DC 3 to 110V AC 6 to 220V | DC 6 to 220V AC 6 to 380V | DC 6 to 220V AC 6 to 380V | DC 6 to 220V AC 6 to 380V |
Coil nominal power | DC≤0.93W | DC≤0.93W | DC≤0.9W AC≤1.2VA | DC≤2.5W AC≤4.5VA | DC≤2.8W AC≤4.2VA | DC≤3W AC≤4.5VA |
Electrical life | 105OPS | 105OPS | 105OPS | 105OPS | 105OPS | 105OPS |
Mechanical life | 106OPS | 106OPS | 106OPS | 106OPS | 107OPS | 107OPS |
Operating temperature | -40~+85 | -40~+85 | -40~55 | -40~70 | -40~55 | -40~55 |
Weight | ≤24g | ≤31g | ≤71g | ≤115g | ≤150g | ≤180g |
Mounting methods | Printed-circuit board | Printed-circuit board | Flange/Outlet | Outlet | Scfrew Mounting | Outlet/Guide rail |
