JQX-10-2C(JTX) 8pin 10A AC220V DC24V with/without LED general purpose relay
JQX-10-2C(JTX)
General purpose relay are electric switches that use electromagnetism to convert small electrical stimuli into larger currents.
Delivery
FOB
minimum order
300 pieces
Supply Ability
100000.0pieces / Month
Country of Origin
Shanghai/Ningbo
Quantity
JQX-10-2C(JTX) 8pin 10A AC220V DC24V with/without LED general purpose relay

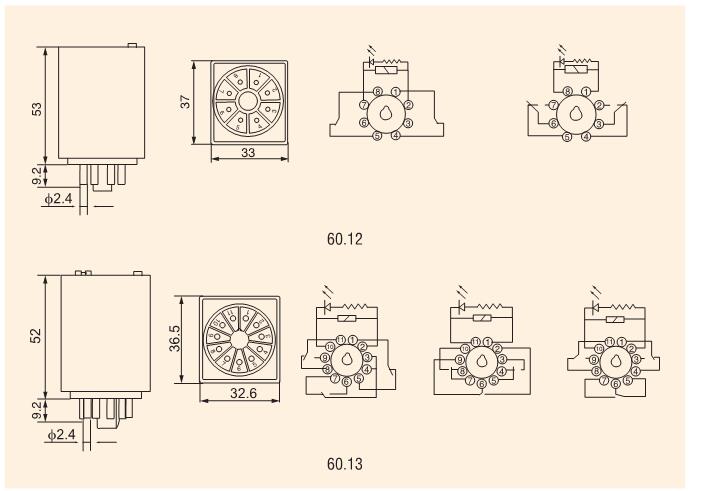

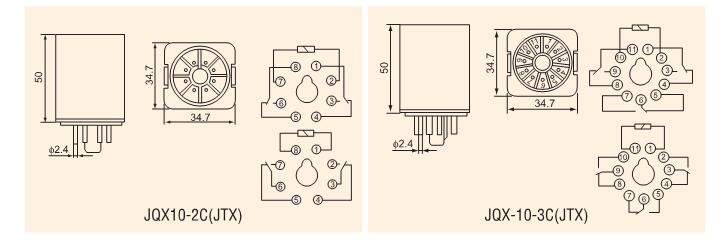

| Model | 60.12 | 60.13 | JQX-10-2C(JTX) | JQX-10-3C(JTX) |
Coil rated voltage | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V |
AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | |
| Coil rated power | DC ≤ 1.6W | DC ≤ 1.6W | DC ≤ 1.6W | DC ≤ 1.6W |
| AC ≤ 2.8VA | AC ≤ 2.8VA | AC ≤ 2.8VA | AC ≤ 2.8VA | |
Electrical Life | 10^5 OPS | 10^5 OPS | 10^5 OPS | 10^5 OPS |
Mechanical life | 10^7 OPS | 10^7 OPS | 10^7 OPS | 10^7 OPS |
Operating temperature | -40℃~70℃ | -40℃~70℃ | -40℃~65℃ | -40℃~65℃ |
Weight | ≤70g | ≤80g | ≤68g | ≤69g |
Mounting methods | outlet | outlet | outlet | outlet |
| Contacting rating | 2Z ,2H ,2D | 3Z ,3H ,3D | 2Z | 3Z |
| Contact resistance | 100 mΩ (1A 6VDC ) | 100 mΩ (1A 6VDC ) | ||
| Contact capacity | 10A 250VAC 30VDC | 10A 250VAC 30VDC | 10A 250VAC 30VDC | 10A 250VAC 30VDC |
| Insulation resistance | 500 MΩ 500VDC | |||
| Dialectric strength | BCC ≥ 1500VAC 1min | |||
| BOC ≥ 1000VAC 1min | ||||
| Operate time | 25ms/15ms | |||
