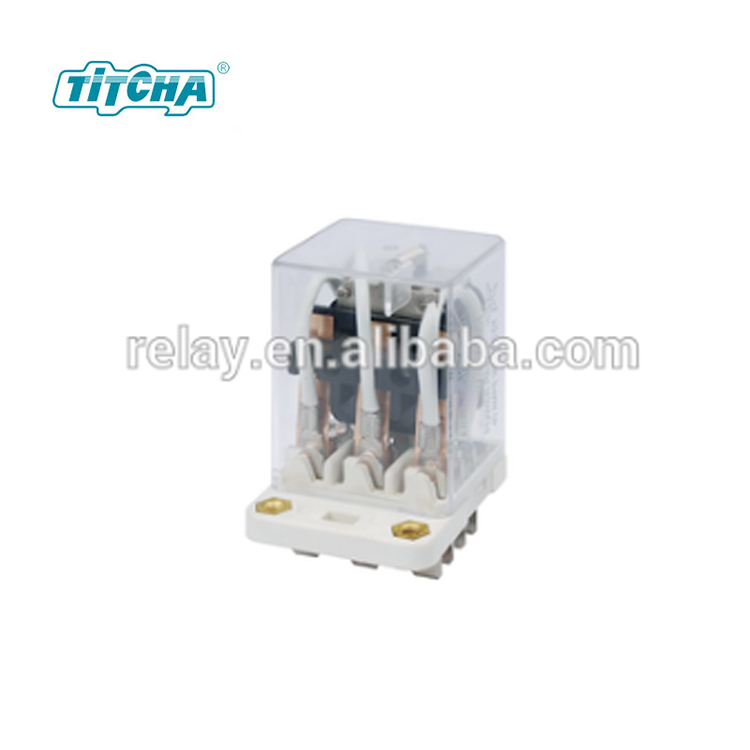

JQX-38F-3C(B type) Relay/power relay
JQX-38F-3C(B type) Relay
Delivery
FOB
minimum order
500 boxes
Supply Ability
100000.0boxes / Month
Country of Origin
Shanghai,Ningbo
Type
Quantity
- color:white&black
- Theory:power relays
- Usage:General Purpose
- Size:Miniature
- Protect Feature:Sealed
- Contact Load:High Power
- Place of Origin:CN;ZHE
- Brand Name:TITCHA
- Model Number:JQX-38F-3C(B type) Relay
- power relay
- power relay
- power relay
- power relay
Size(mm ):42.2×37.6×55.3
Tirminal layout:2Z,2H,3Z,3H
Contact capacity: 30A 28VDC/300A 220VAC
Contact resistance:≤50mΩ
Inulation resistance:≥1000MΩ
Dielectric strength: BOC 1000VAC/BCC 1500VAC
Model | JQX-15F(T90) | JOX-16F(T91) | JQX-30F-2C | JQC-38F-3C | JQX-40F-1Z | JQX-40F-2Z |
Coil nominal voltage | DC 3 to 110V | DC 3 to 110V | DC 3 to 110V AC 6 to 220V | DC 6 to 220V AC 6 to 380V | DC 6 to 220V AC 6 to 380V | DC 6 to 220V AC 6 to 380V |
Coil nominal power | DC≤0.93W | DC≤0.93W | DC≤0.9W AC≤1.2VA | DC≤2.5W AC≤4.5VA | DC≤2.8W AC≤4.2VA | DC≤3W AC≤4.5VA |
Electrical life | 105OPS | 105OPS | 105OPS | 105OPS | 105OPS | 105OPS |
Mechanical life | 106OPS | 106OPS | 106OPS | 106OPS | 107OPS | 107OPS |
Operating temperature | -40°C~+85°C | -40°C~+85°C | -40°C~55°C | -40°C~70°C | -40°C~55°C | -40°C~55°C |
Weight | ≤24g | ≤31g | ≤71g | ≤115g | ≤150g | ≤180g |
Mounting methods | Printed-circuit board | Printed-circuit board | Flange/Outlet | Outlet | Scfrew Mounting | Outlet/Guide rail |
