High quality cheap price power relay 220v high demand products good selling 24v dc relay
JQX-15F(T90)
Delivery
FOB
minimum order
1000 pieces
Supply Ability
10000.0pieces / Month
Country of Origin
Ningbo / Shanghai
Type
Quantity
- Certificate:CE
- Coil nominal voltage:DC 3 to 110V
- Contact capacity:30A 28VDC/ 20A 220VAC
- Dielectric strength:BOC 1000VAC/BCC 1500VAC .
- Electrical life:10^5 OPS
- Mechanical life:10^7 OPS
- Operating temperature:-40~85 °C
- Size:32.5 * 27.5 * 20.5
- Weight:≤24g
- Theory:Power Relay
- Usage:General Purpose
- Size:Miniature
- Protect Feature:Epoxy
- Contact Load:Low Power
- Place of Origin:CN;ZHE
- Brand Name:Titcha
- Model Number:JQX-15F(T90)

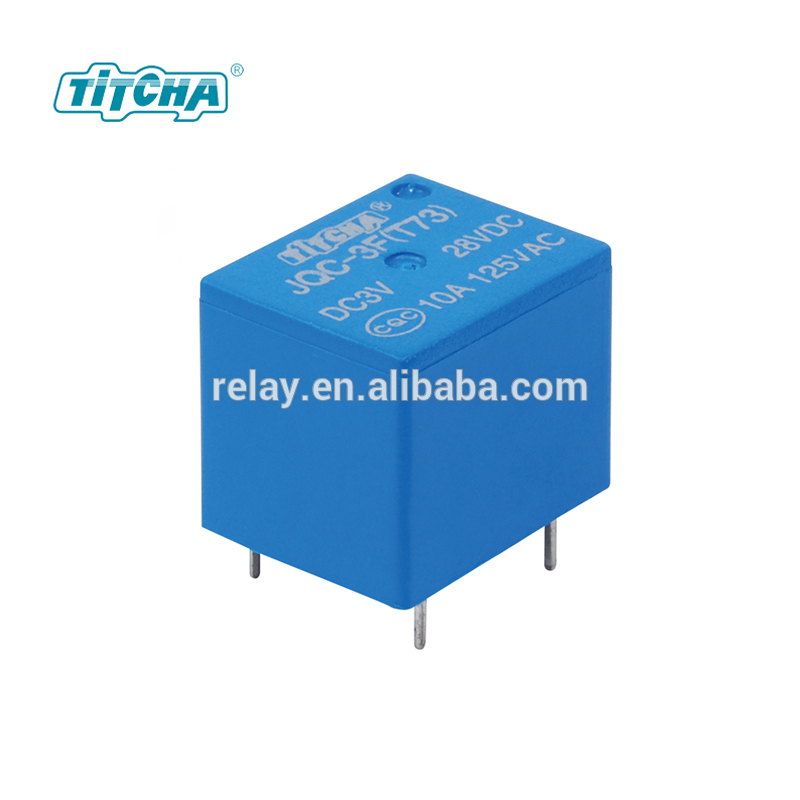

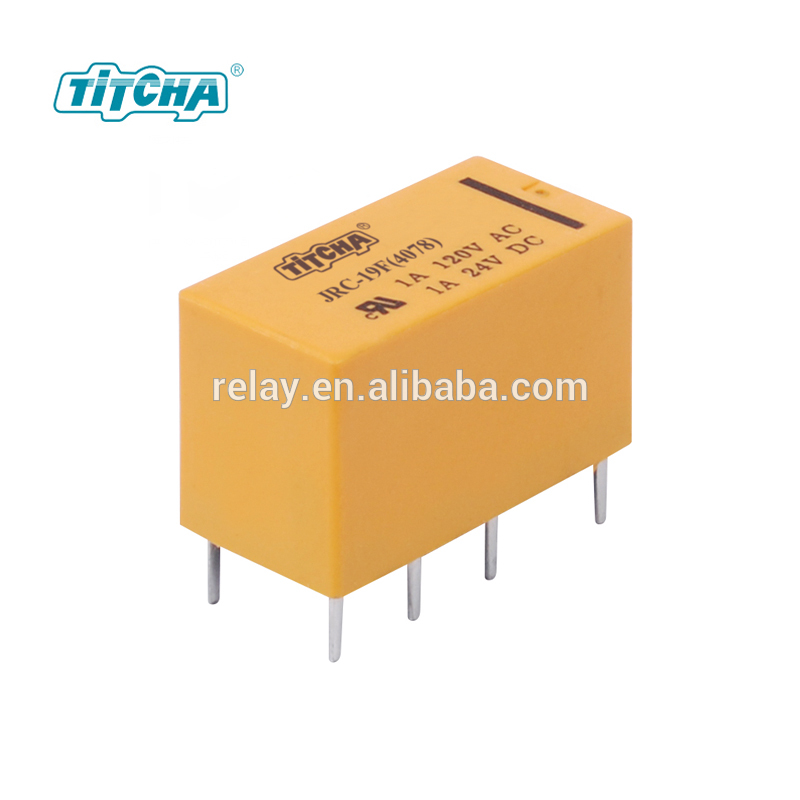

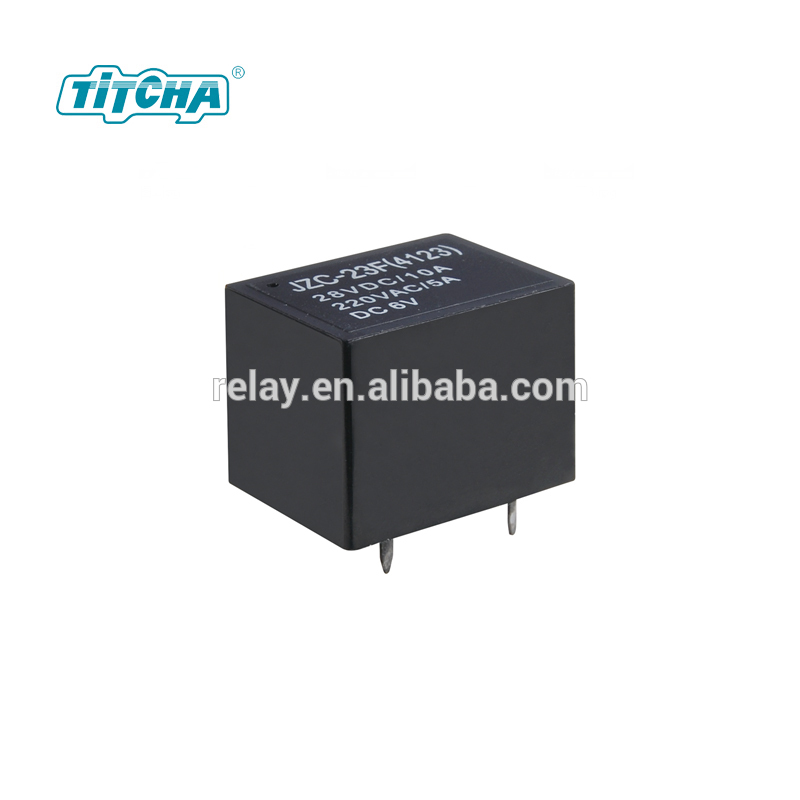

- Miniature electromagnetic relay
- Miniature electromagnetic relay
- Miniature electromagnetic relay
- Miniature electromagnetic relay
Miniature electromagnetic relay
Miniature electromagnetic relay
Miniature electromagnetic relay
Miniature electromagnetic relay
Miniature electromagnetic relay
- Size(mm): 32.5×27.5×20.5
- Tirminal layout: 1Z,1H
- Contact capacity: 30A 28VAC/20A 220VAC
- Contact resistance: ≤50mΩ
- Inulation resistance: ≥500MΩ
- Dielectric strength: BOC 1000VAC/BCC 1500VAC
---Technical Parameter ---
Model | JQX-15F(T90) | JOX-16F(T91) | JQX-30F-2C | JQC-38F-3C | JQX-40F-1Z | JQX-40F-2Z |
Coil nominal voltage | DC 3 to 110V | DC 3 to 110V | DC 3 to 110V AC 6 to 220V | DC 6 to 220V AC 6 to 380V | DC 6 to 220V AC 6 to 380V | DC 6 to 220V AC 6 to 380V |
Coil nominal power | DC≤0.93W | DC≤0.93W | DC≤0.9W AC≤1.2VA | DC≤2.5W AC≤4.5VA | DC≤2.8W AC≤4.2VA | DC≤3W AC≤4.5VA |
Electrical life | 105OPS | 105OPS | 105OPS | 105OPS | 105OPS | 105OPS |
Mechanical life | 106OPS | 106OPS | 106OPS | 106OPS | 107OPS | 107OPS |
Operating temperature | -40°C~+85°C | -40°C~+85°C | -40°C~55°C | -40°C~70°C | -40°C~55°C | -40°C~55°C |
Weight | ≤24g | ≤31g | ≤71g | ≤115g | ≤150g | ≤180g |
Mounting methods | Printed-circuit board | Printed-circuit board | Flange/Outlet | Outlet | Scfrew Mounting | Outlet/Guide rail |
32.5×27.5×20.5
