Insulation resistance more than 1000ohm blue cwer general purpose relay

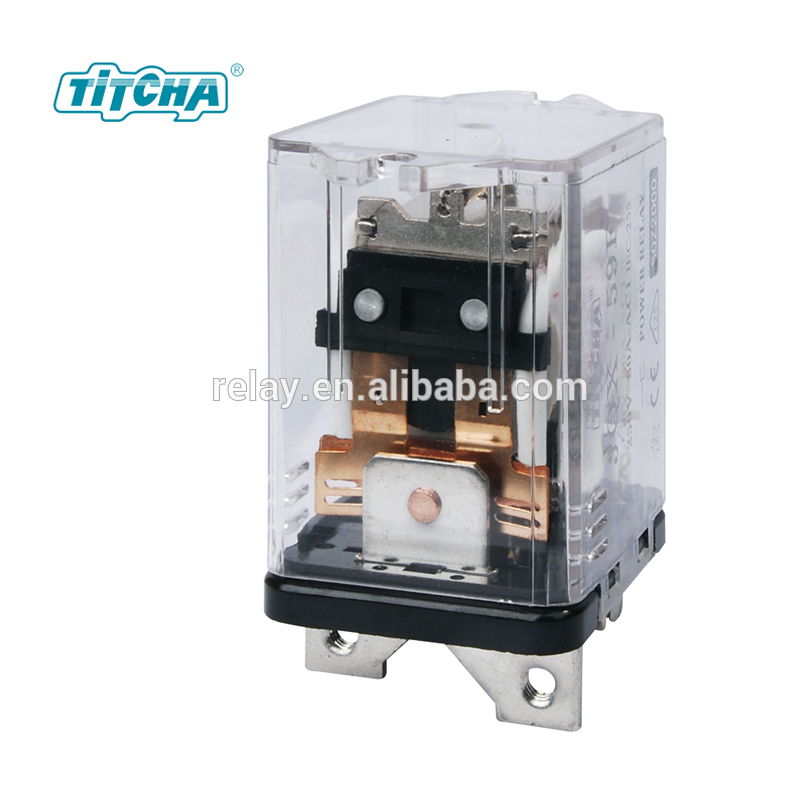

JQX-40F-2Z
Relays are electric switches that use electromagnetism to convert small electrical stimuli into larger currents.
Delivery
FOB
minimum order
500 pieces
Supply Ability
10000.0pieces / Month
Country of Origin
Shanghai,Ningbo
Type
Quantity
- color:white&blue
- Theory:power relays
- Usage:General Purpose
- Size:Miniature
- Protect Feature:Sealed
- Contact Load:High Power
- Place of Origin:CN;ZHE
- Brand Name:TITCHA

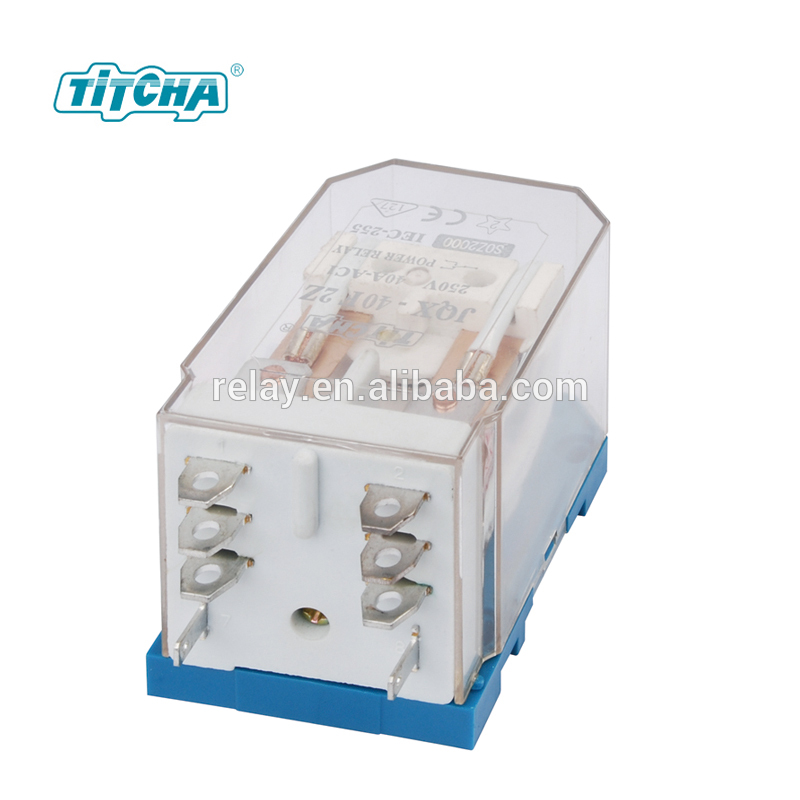

- Model Number:JQX-40F-2Z
- Power Relay
- Power Relay
- Power Relay
- Power Relay
- Power Relay
Size(mm): 68×48×51
Tirminal layout: 2Z,2H
Contact capacity: 40A 28VDC/40A 220VAC
Contact resistance: ≤50mΩ
Inulation resistance: ≥1000MΩ
Dielectric strength: BOC 1500VAC/BCC 1500VAC
Model | JQX-15F(T90) | JOX-16F(T91) | JQX-30F-2C | JQC-38F-3C | JQX-40F-1Z | JQX-40F-2Z |
Coil nominal voltage | DC 3 to 110V | DC 3 to 110V | DC 3 to 110V AC 6 to 220V | DC 6 to 220V AC 6 to 380V | DC 6 to 220V AC 6 to 380V | DC 6 to 220V AC 6 to 380V |
Coil nominal power | DC≤0.93W | DC≤0.93W | DC≤0.9W AC≤1.2VA | DC≤2.5W AC≤4.5VA | DC≤2.8W AC≤4.2VA | DC≤3W AC≤4.5VA |
Electrical life | 105OPS | 105OPS | 105OPS | 105OPS | 105OPS | 105OPS |
Mechanical life | 106OPS | 106OPS | 106OPS | 106OPS | 107OPS | 107OPS |
Operating temperature | -40°C~+85°C | -40°C~+85°C | -40°C~55°C | -40°C~70°C | -40°C~55°C | -40°C~55°C |
Weight | ≤24g | ≤31g | ≤71g | ≤115g | ≤150g | ≤180g |
Mounting methods | Printed-circuit board | Printed-circuit board | Flange/Outlet | Outlet | Scfrew Mounting | Outlet /Guide rail |
