HH63P(LY3) 11pin 10A AC220V DC24V with/without LED general purpose relay
HH63P(LY3)
Relays are electric switches that use electromagnetism to convert small electrical stimuli into larger currents. These conversions occur when electrical inputs activate electromagnets to either form or break existing circuits
Delivery
FOB
minimum order
500 pieces
Supply Ability
100000.0pieces / Month
Country of Origin
Shanghai/Ningbo
Quantity
HH63P(LY3) 11pin 10A AC220V DC24V with/without LED general purpose relay

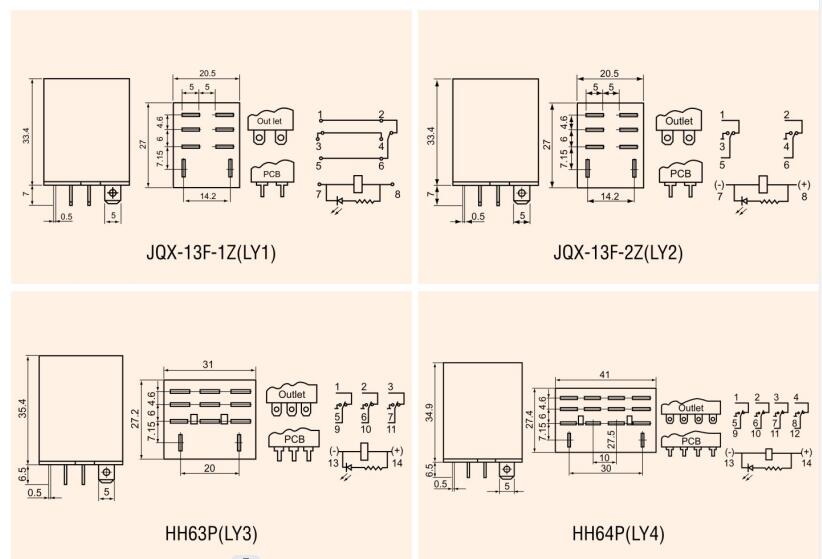

Model | LY2 | LY3 | LY4 |
Coil rated voltage | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V |
AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | |
Coil rated power | DC≤0.9W | DC≤0.9W | DC≤0.9W |
AC≤1.2VA | AC≤1.2VA | AC≤1.2VA | |
Electrical Life | 100000 OPS | 100000 OPS | 100000 OPS |
Mechanical life | 10000000 OPS | 10000000 OPS | 10000000 OPS |
Operating temperature | -25°C~55°C | -25°C~55°C | -25°C~55°C |
Weight | ≤34g | ≤49g | ≤69g |
Mounting methods | Printed Circuit board Flange,outlet | Printed Circuit board Flange,outlet | Printed Circuit board Flange,outlet |
| Contacting rating | 2Z | 3Z | 4Z |
| Contact resistance | 100m Ω （1A 6VDC） | 100m Ω （1A 6VDC） | 100m Ω （1A 6VDC） |
| Contact capacity | 10A/ 250VAC 30VDC | 10A/ 250VAC 30VDC | 10A/ 250VAC 30VDC |
| Insulation resistance | 500M Ω （500VDC） | ||
| Dialectric strength | BCC ≥ 1500VAC 1min | ||
| BOC ≥ 1000VAC 1min | |||
| COC ≥ 1500VAC 1min | |||
| Operate time | 25ms/15ms | ||
