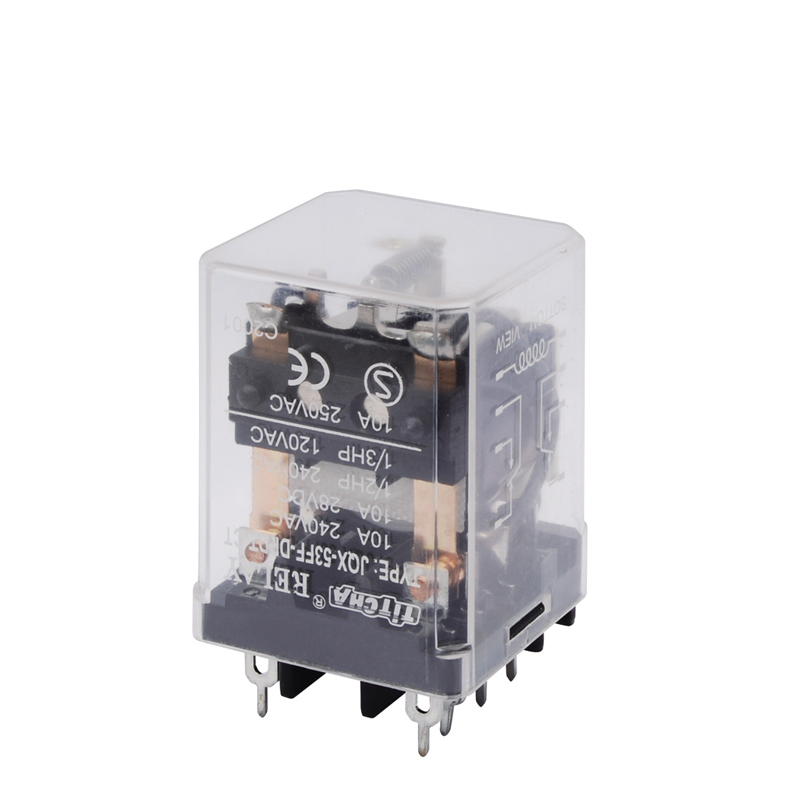

JQX-53FF-2Z Relay/general purpose relay / relays 12vdc 14 pin
- color:black
- Theory:Electromagnetic Relay
- Usage:General Purpose
- Size:Miniature
- Protect Feature:Sealed
- Contact Load:High Power
- Place of Origin:CN;ZHE
- Brand Name:TITCHA
- Model Number:JQX-53FF-2Z RELAY
General purpose relay
General purpose relay
General purpose relay
General purpose relay
General purpose relay
General purpose relay
General purpose relay
General purpose relay
General purpose relay
Size mm : 37×34×47.3
Terminal layout:3Z
Contact capacity :10A 240VAC/10A 28VDC
Contact resistance :≤50mΩ
Insulation resistance :≥500MΩ
Dielectric strength :BOC 1000VAC/BCC 1500VAC
Model | FMK-3Z | JQX-53FF-2Z | JQX-53FF-3Z | 737 |
Coil rated voltage | DC 6 to 110V | DC 6 to 110V | DC 6 to 110V | DC 6 to 110V |
AC 6 to 220V | AC 6 to 220V | AC 6 to 220V | AC 6 to 220V | |
Coil rated power | DC≤2.0W | DC≤2.0W | DC≤2.0W | DC≤2.0W |
AC≤3.5VA | AC≤3.5VA | AC≤3.5VA | AC≤3.5VA | |
Electrical Life | 105OPS | 105OPS | 105OPS | 105OPS |
Mechanical life | 107OPS | 107OPS | 107OPS | 107OPS |
Operating temperature | -40°C~70°C | -40°C~70°C | -40°C~70°C | -40°C~70°C |
Weight | ≤80g | ≤72g | ≤76g | ≤75g |
Mounting methods | outlet | Printed Circuit board Flange,outlet | Printed Circuit board Flange,outlet | Printed Circuit board Flange,outlet |
Q: what's the payment term?
A: We accept L/C,T/,Western Union
Q: How's the delivery time
A: Usually it will take about 10-15 days for production
Q: Tell me the standard of package?
A: For the small capacity, it use carton, but for big capacity, we should use strong
wooden case for protection
Q: What about shipment?
A: Take the air express or propagation mode of transport according to users
requirements
Q: How can I get your sample?
A: You can request sample purchase through our website
Q: What about product problem occurs?
A: You can contact the sales staff at the first time tell him/her the situation we
will arrange technical staff with your communication online if there are quality
problems, we will negotiate with you, provide product replacement or repair service
for you
Q: What is your on duty?
A: Beijing 8: 00am-23: 00p
