RY4S-U 14pin 3A AC220V DC24V with/without LED general purpose relay
RY4S-U
Relays are electric switches that use electromagnetism to convert small electrical stimuli into larger currents. These conversions occur when electrical inputs activate electromagnets to either form or break existing circuits
Delivery
FOB
minimum order
500 pieces
Supply Ability
10000.0pieces / Month
Country of Origin
Ningbo / Shanghai
Quantity
RY4S-U 14pin 3A AC220V DC24V with/without LED general purpose relay

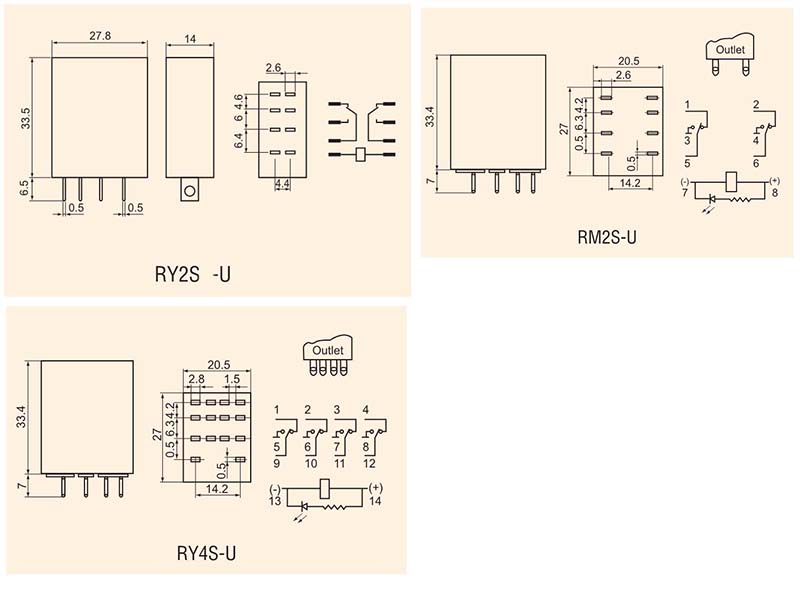

Model | RY2S-U | RM2S-U | RY4S-U |
Coil rated voltage | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V |
AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | |
Coil rated power | DC≤1.5W | DC≤0.9W | DC≤0.9W |
AC≤2.5VA | AC≤1.2VA | AC≤1.2VA | |
Electrical Life | 10^5 OPS | 10^5 OPS | 10^5 OPS |
Mechanical life | 10^7 OPS | 10^7 OPS | 10^7 OPS |
Operating temperature | -40°C~70°C | -40°C~70°C | -40°C~55°C |
Weight | ≤22g | ≤34g | ≤32g |
Mounting methods | Printed Circuit board Flange,outlet | Flange,outlet | Printed Circuit board Flange,outlet |
| Contacting rating | 2Z | 2Z | 4Z |
| Contact resistance | 50m Ω （1A 6VDC） | 50m Ω （1A 6VDC） | 100m Ω （1A 6VDC） |
| Contact capacity | 3A/ 250VAC 30VDC | 5A/ 250VAC 30VDC | 3A/ 250VAC 28VDC |
| Insulation resistance | 500M Ω （500VDC） | ||
| Dialectric strength | BCC ≥ 1500VAC 1min | ||
| BOC ≥ 1000VAC 1min | |||
| COC ≥ 1500VAC 1min | |||
| Operate time | 25ms/15ms | ||
Model | RY2S-U | RM2S-U | RY4S-U |
Coil rated voltage | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V |
AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | |
Coil rated power | DC≤1.5W | DC≤0.9W | DC≤0.9W |
AC≤2.5VA | AC≤1.2VA | AC≤1.2VA | |
Electrical Life | 10^5 OPS | 10^5 OPS | 10^5 OPS |
Mechanical life | 10^7 OPS | 10^7 OPS | 10^7 OPS |
Operating temperature | -40°C~70°C | -40°C~70°C | -40°C~55°C |
Weight | ≤22g | ≤34g | ≤32g |
Mounting methods | Printed Circuit board Flange,outlet | Flange,outlet | Printed Circuit board Flange,outlet |
| Contacting rating | 2Z | 2Z | 4Z |
| Contact resistance | 50m Ω （1A 6VDC） | 50m Ω （1A 6VDC） | 100m Ω （1A 6VDC） |
| Contact capacity | 3A/ 250VAC 30VDC | 5A/ 250VAC 30VDC | 3A/ 250VAC 28VDC |
| Insulation resistance | 500M Ω （500VDC） | ||
| Dialectric strength | BCC ≥ 1500VAC 1min | ||
| BOC ≥ 1000VAC 1min | |||
| COC ≥ 1500VAC 1min | |||
| Operate time | 25ms/15ms | ||
