2000VAC 50Hz/lmin Dielectric strength quality-guarantee 12v dc solid state relay nais relay
JGX-10F
Delivery
FOB
minimum order
500 pieces
Supply Ability
10000.0pieces / Month
Country of Origin
Ningbo / Shanghai
Type
Quantity
- solid state relay
- solid state relay
- solid state relay
- solid state relay
- Certificate:CE
- Size:59*45*25
- Load current:10A
- Load voltage:25-250VAC H: 150V-450VAC
- Output voltage drop:1.8Vmax
- Inulation resistance:100MΩ min.(at 500VAC)
- Dielectric Strength:2000VAC 50Hz/lmin
- Operating Temperature:-20-80 degree
- Theory:Solid State Relay
- Usage:General Purpose
- Size:Miniature
- Protect Feature:Sealed
- Contact Load:High Power
- Place of Origin:CN;ZHE
- Brand Name:Titcha

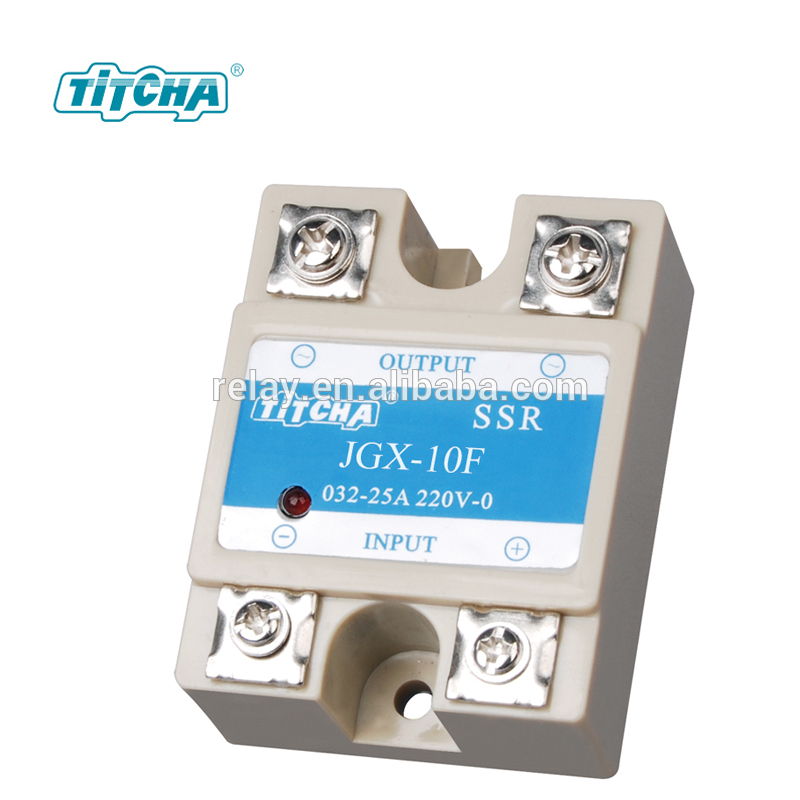

- Model Number:JGX-10F
| Model | JGX-10F |
| Size | 59*45*25 |
| On-off Time | 1ms+Load current of 0.5 cycles following |
| Load current | 10A |
| Load voltage | 25-250VAC H: 150V-450VAC |
| Output voltage drop | 1.8Vmax |
| off Leakage Current | Zero-crossing type: 10mA max at 220VAC 15mA max at 380VAC Stochastic pattern: 5mA max 220VAC 10mA max at 380VAC |
| Inulation resistance | 100MΩ min.(at 500VAC) |
| Dielectric Strength | 2000VAC 50Hz/lmin |
| Operating Temperature | -20-80 degree (Non-condensing and freezing) |
