RR2P-U 8pin 10A AC220V DC24V with/without LED general purpose relay
RR2P-U
Relays are electric switches that use electromagnetism to convert small electrical stimuli into larger currents. These conversions occur when electrical inputs activate electromagnets to either form or break existing circuits
Delivery
FOB
minimum order
500 pieces
Supply Ability
10000.0pieces / Month
Country of Origin
Ningbo / Shanghai
Quantity
RR2P-U 8pin 10A AC220V DC24V with/without LED general purpose relay
RR2P-U 8pin 10A AC220V DC24V with/without LED general purpose relay

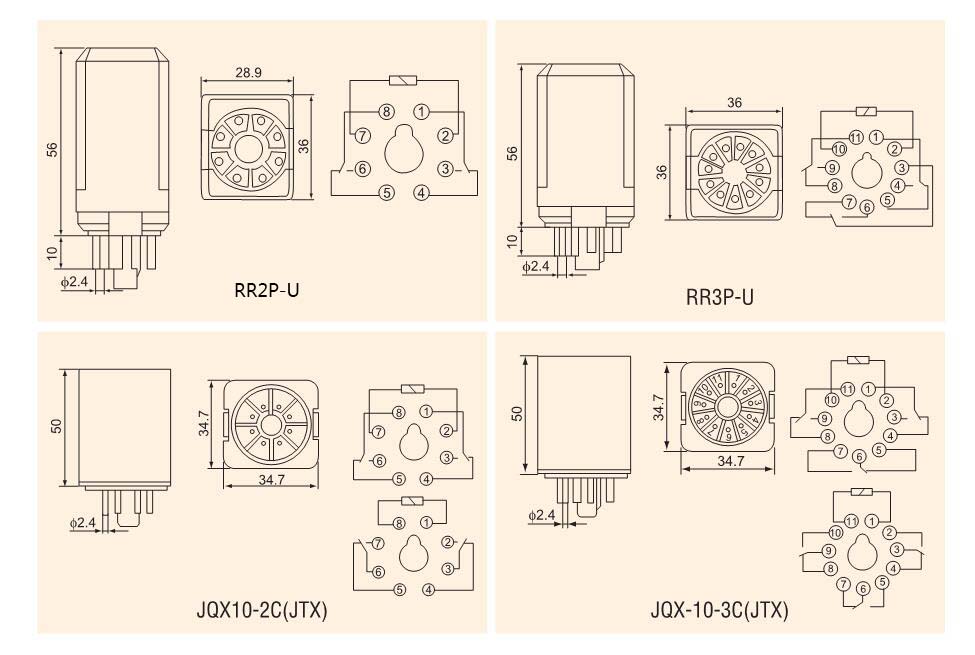

| Model | RR2P-U | RR3P-U | JQX-10-2C(JTX) | JQX-10-3C(JTX) |
Coil rated voltage | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V |
AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | |
| Coil rated power | DC ≤ 1.6W | DC ≤ 1.6W | DC ≤ 1.6W | DC ≤ 1.6W |
| AC ≤ 2.8VA | AC ≤ 2.8VA | AC ≤ 2.8VA | AC ≤ 2.8VA | |
Electrical Life | 10^5 OPS | 10^5 OPS | 10^5 OPS | 10^5 OPS |
Mechanical life | 10^7 OPS | 10^7 OPS | 10^7 OPS | 10^7 OPS |
Operating temperature | -40℃~55℃ | -40℃~55℃ | -40℃~65℃ | -40℃~65℃ |
Weight | ≤74g | ≤80g | ≤68g | ≤69g |
Mounting methods | outlet | outlet | outlet | outlet |
| Contacting rating | 2Z | 3Z | 2Z | 3Z |
| Contact resistance | 100 mΩ (1A 6VDC ) | 100 mΩ (1A 6VDC ) | ||
| Contact capacity | 10A 250VAC 30VDC | 10A 250VAC 30VDC | 10A 250VAC 30VDC | 10A 250VAC 30VDC |
| Insulation resistance | 500 MΩ 500VDC | |||
| Dialectric strength | BCC ≥ 1500VAC 1min | |||
| BOC ≥ 1000VAC 1min | ||||
| Operate time | 25ms/15ms | |||
