55.14 11pin 3A AC220V DC24V with/without LED general purpose relay
55.14
Delivery
FOB
minimum order
500 pieces
Supply Ability
100000.0pieces / Month
Country of Origin
Ningbo/Shanghai
Quantity
55.14 11pin 3A AC220V DC24V with/without LED general purpose relay

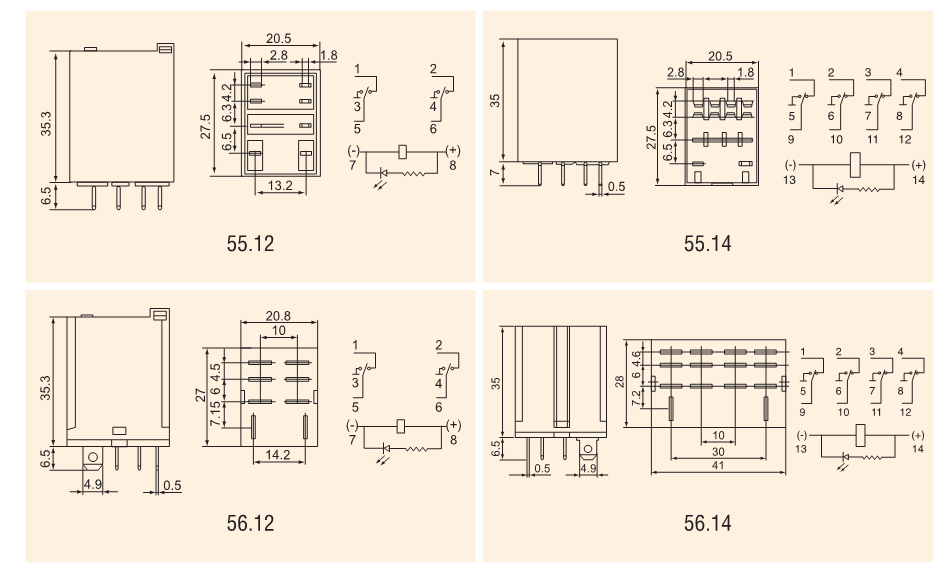

| Model | 55.12 | 55.14 | 56.12 | 56.14 |
Coil rated voltage | DC 6 to 110V | DC 6 to 110V | DC 6 to 110V | DC 6 to 110V |
AC 6 to 240V | AC 6 to 240V | AC 6 to 240V | AC 6 to 240V | |
| Coil rated power | DC ≤ 0.9W | DC ≤ 0.9W | DC ≤ 0.9W | DC ≤ 0.9W |
| AC ≤ 1.2VA | AC ≤ 1.2VA | AC ≤ 1.2VA | AC ≤ 1.2VA | |
Electrical Life | 10^5 OPS | 10^5 OPS | 10^5 OPS | 10^5 OPS |
Mechanical life | 10^7 OPS | 10^7 OPS | 10^7 OPS | 10^7 OPS |
Operating temperature | -40℃~70℃ | -40℃~70℃ | -40℃~70℃ | -40℃~70℃ |
Weight | ≤78g | ≤78g | ≤78g | ≤78g |
Mounting methods | Printed-circuit board, Flange , outlet | Printed-circuit board, Flange , outlet | Printed-circuit board, Flange , outlet | Printed-circuit board, Flange , outlet |
| Contacting rating | 2Z ,2H ,2D | 3Z ,3H ,3D | 2Z ,2H ,2D | 3Z ,3H ,3D |
| Contact resistance | 100 mΩ (1A 6VDC ) | |||
| Contact capacity | 5A 250VAC 30VDC | 3A 250VAC 30VDC | 10A 250VAC 30VDC | 10A 250VAC 30VDC |
| Insulation resistance | 500 MΩ 500VDC | |||
| Dialectric strength | BCC ≥ 1500VAC 1min | |||
| BOC ≥ 1000VAC 1min | ||||
| Operate time | 25ms/15ms | |||
