TH-206 Time relay 0.1S-99H on delay / off delay 220VAC 24VDC
TH-206 Time relay 0.1S-99H on delay / off delay 220VAC 24VDC
TH-206 adopts the advanced large-scale integrated circuits. Its shape and performance can be comparable to the similar one in Europe. There are a great number of advantages, such as the beautiful compact shape, wide timing range, high accuracy and reliablity, low power consumption, long life, large capacity and easy installation. It can be used in all kinds of automatic control system.
Specification ：
Pressure of a power | AC220V ± 10%,50Hz |
Range of endurances of time | 0,1s-99h (8 ranges) |
Work diagram | Delay on Delay on deenergizing |
Quantity and the type of contacts | 2 switching groups |
Mistake of readout of endurance of time | No more than 2% |
Available time | No more than ±0.05% |
Time of repeated readiness | No more than 0,5s |
The maximum switched pressure | 400v |
The maximum switched current at active loading: | AC 250B,50Hz DC30B(DC) 8A |
The maximum switched capacity | 2000VA |
Mechanical wear resistance,cycles | Not less 1000000 |
Electrical wear resistance ,cycles | Not less 100000 |
Degree of protection of the relay： | |
On the case | IP40 |
On the plugs | IP10 |
Range of working temperatures | -10….+55℃ |
Storage temperature | -40……+60℃ |
Relative humidity of air | To 80% at 25℃ |
High above sea level | To 2000m |
Working position in space | Any |
Overall dimensions | 17.5*90 *66mm |
Weight | 0.10kg |

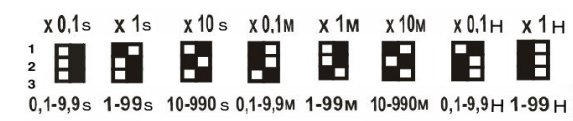

Timing Range:
Adjust Switch 1,2 and 3 to the different appropriate locations for the different time base and timing ranges. Following figure:

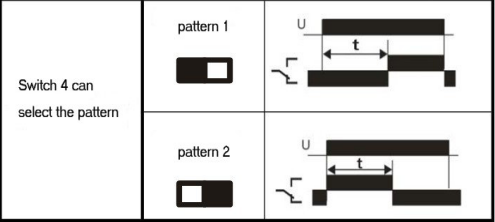

Work Diagram:

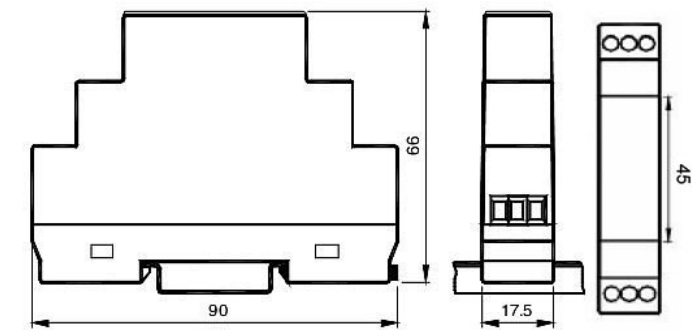

Dimensions:
Attention：
1. Carefully conect the line according to Wiring Diagram.
2.Preset the delay value before energization. When the preset time reaches to the set value, the relay will move to drive the load for control purpos.
3. In the power setting, setting value is not valid, you must re-power to enter into force.If driving a larger load should be in conjunction with AC contactor or intermediate relay.
4. Before using TH206, clearly understand the input voltage and choose the right input voltage which is same to product voltage, or the wrong input voltage will burn the product.
