New qualified products 65*38.5*46 mm size normally closed general purpose relay

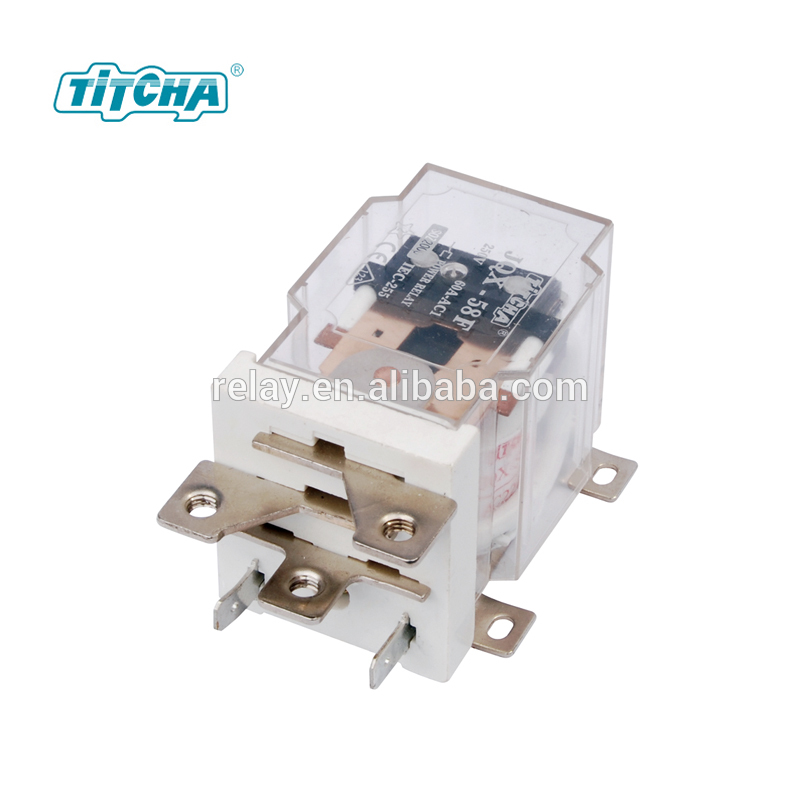

JQX-58F(JQX-60F)
Delivery
FOB
minimum order
1000 pieces
Supply Ability
100000.0pieces / Month
Country of Origin
Shanghai or Ningbo
Type
Quantity
- high power relay JQX-58F(JQX-60F):white
- Theory:Voltage Relay
- Usage:General Purpose
- Size:Miniature
- Protect Feature:Epoxy
- Contact Load:High Power
- Place of Origin:CN
- Brand Name:TITCHA
- Model Number:JQX-58F(JQX-60F)

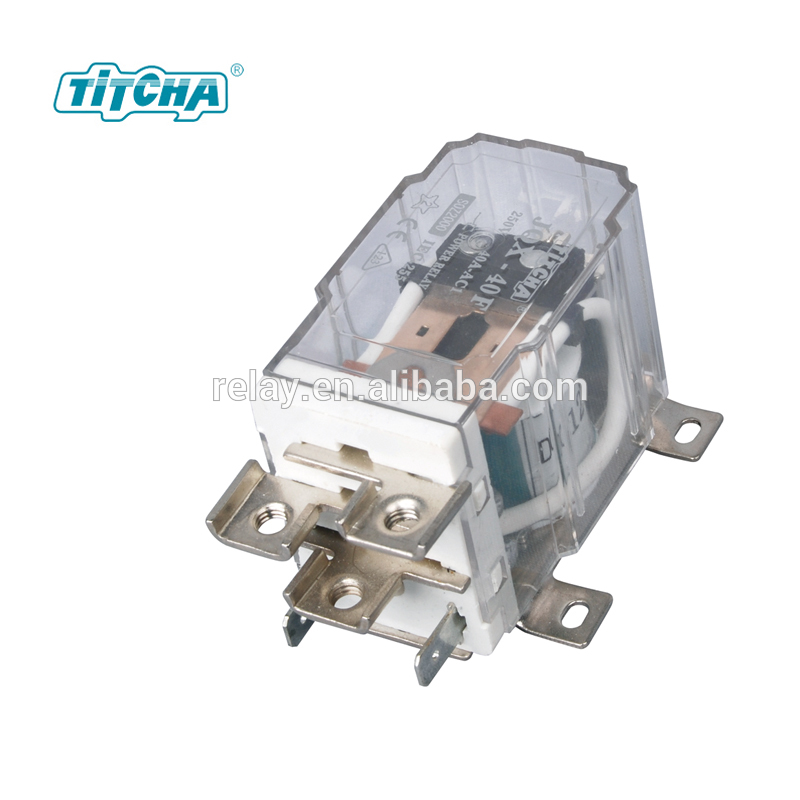

Power relay
Power relay
Power relay
Power relay
Power relay
Power relay
Power relay
Size(mm): 65×38.5×46
Tirminal layout: 1Z,1H,1D
Contact capacity: 60A 28VDC/60A 220VAC
Contact resistance: ≤50mΩ,
Inulation resistance: ≥1000MΩ
Dielectric strength: BOC 1500VAC/BCC 2500VAC

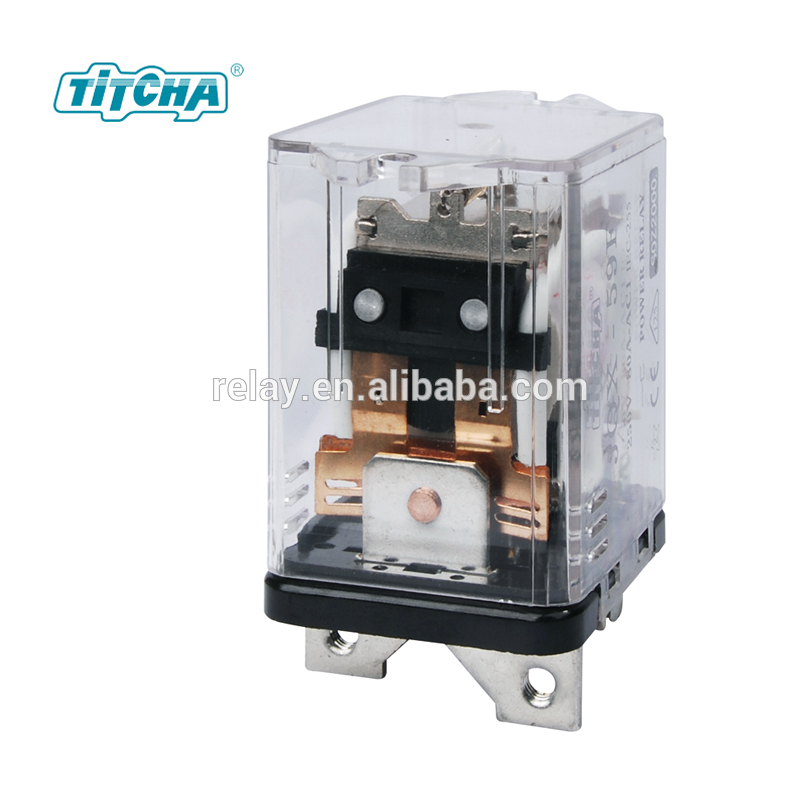

Model | JQX-52F-1Z | JQC-58F-1Z | JQC-59F-1Z | JQC-60F-1Z |
Coil nominal voltage | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V |
AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | |
Coil nominal power | DC≤2.8W | DC≤3W | DC≤3.5W | DC≤3W |
AC≤4.2VA | AC≤4.2VA | AC≤6VA | AC≤4.5VA | |
Electrical life | 105OPS | 105OPS | 105OPS | 105OPS |
Mechanical life | 106OPS | 106OPS | 106OPS | 107OPS |
Operating temperature | -40~55 | -40~70 | -45~55 | -40~+55 |
Weight | ≤150g | ≤191g | ≤233g | ≤187g |
Mounting methods | Scfrew Mounting | Scfrew Mounting | Scfrew Mounting | Scfrew Mounting |
