From ac Premium Market 60a/30vdc Contact Capacity Coil Type General Purpose Relay
JQX-40F-1Z(JQX-52F-1Z)
Relays are electric switches that use electromagnetism to convert small electrical stimuli into larger currents.
Delivery
FOB
minimum order
500 pieces
Supply Ability
10000.0pieces / Month
Country of Origin
Ningbo / Shanghai
Quantity
- Weight:≤150g
- Coil Rated voltage:DC6 to 220V AC6 to 380V
- Coil Rated Power:DC≤2W AC≤2.5VA
- Contact Resistance:50mΩ(1A 6VDC)
- Contact Capacity:60A/30VDC 250VAC
- Insulation resistance:1000MΩ (500VDC)
- Dielectric strength:BCC ≥2500VAC 1min BOC ≥1200VAC 1min
- Electrical life:10^6 OPS
- Mechanical life:10^7 OPS
- Opetating temperature:-40℃~55℃
- Theory:Power Relay
- Usage:General Purpose
- Size:Miniature
- Protect Feature:Sealed
- Contact Load:Low Power
- Place of Origin:CN;ZHE
- Brand Name:Titcha
- Model Number:JQX-40F-1Z(JQX-52F-1Z)

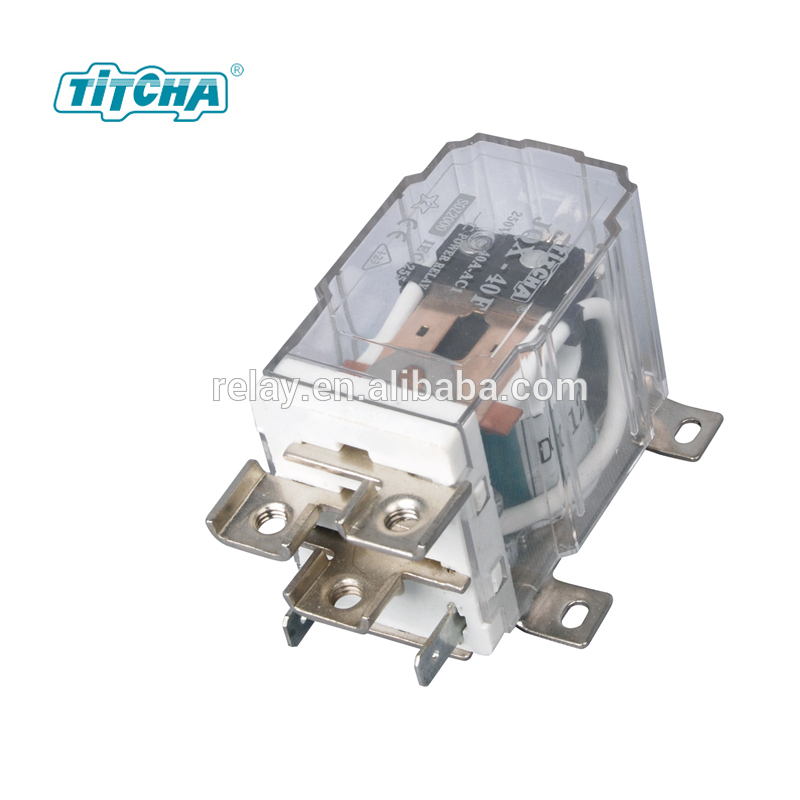

Power relay

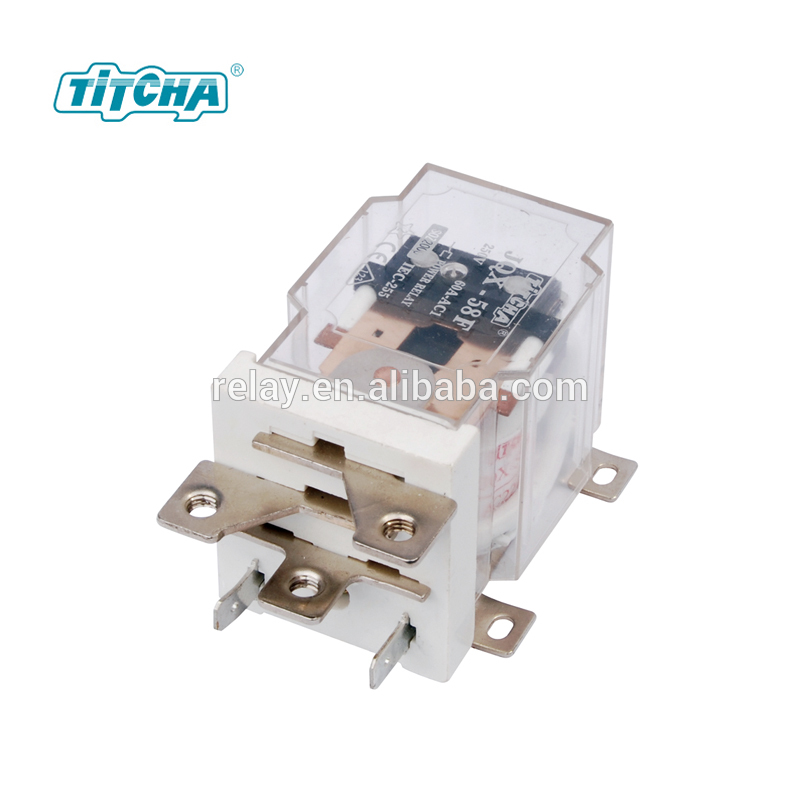

Power relay

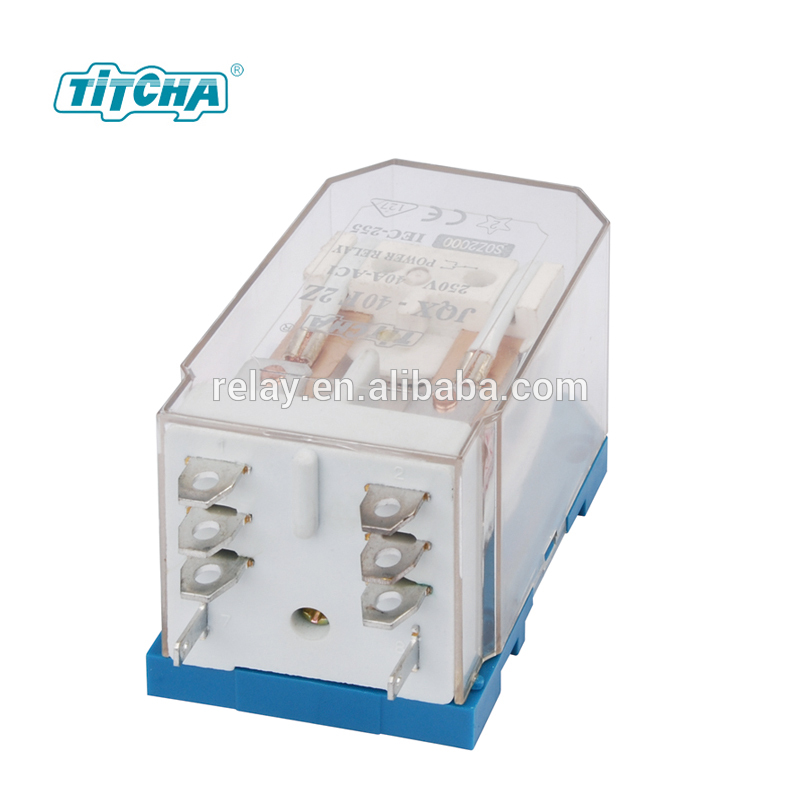

Power relay

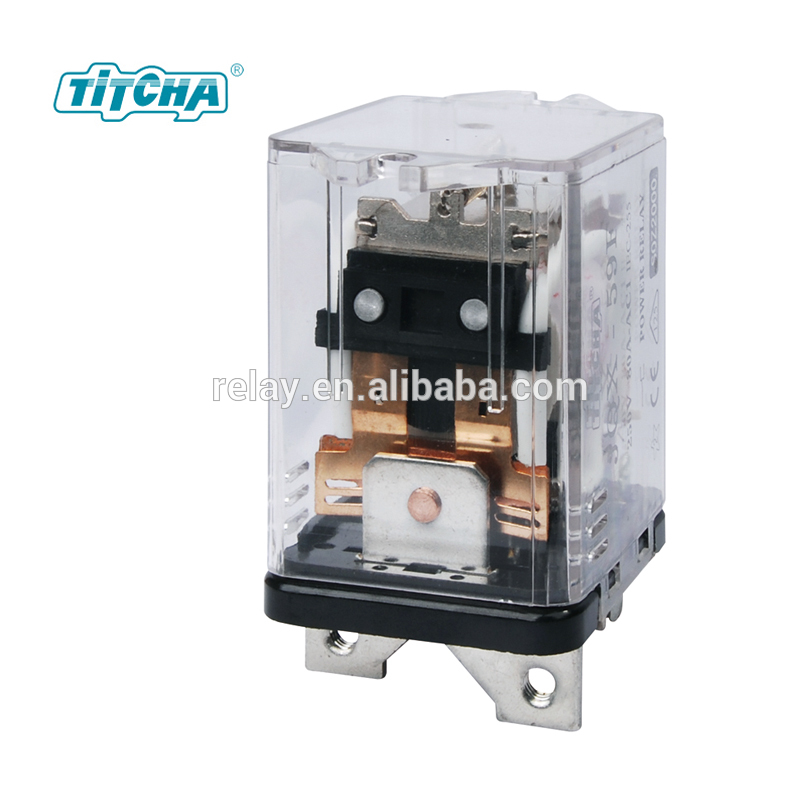

Power relay
Power relay
Power relay
Power relay
Model | JQX-40F-1Z (52F-1Z) |
| Coil Rated voltage | DC6 to 220V AC6 to 380V |
| Coil Rated Power | DC≤2W AC≤2.5VA |
| Contact Resistance | 50mΩ(1A 6VDC) |
| Contact Capacity | 60A/30VDC 250VAC |
| Insulation resistance | 1000MΩ (500VDC) |
| Dielectric strength | BCC ≥2500VAC 1min BOC ≥1200VAC 1min |
| Electrical life | 10^5 OPS |
| Mechanical life | 10^7 OPS |
| Opetating temperature | -40℃~55℃ |
| Weight | ≤150g |
| Operate time | 25ms/15ms |
| Mounting methods | Scfrew Mounting |
