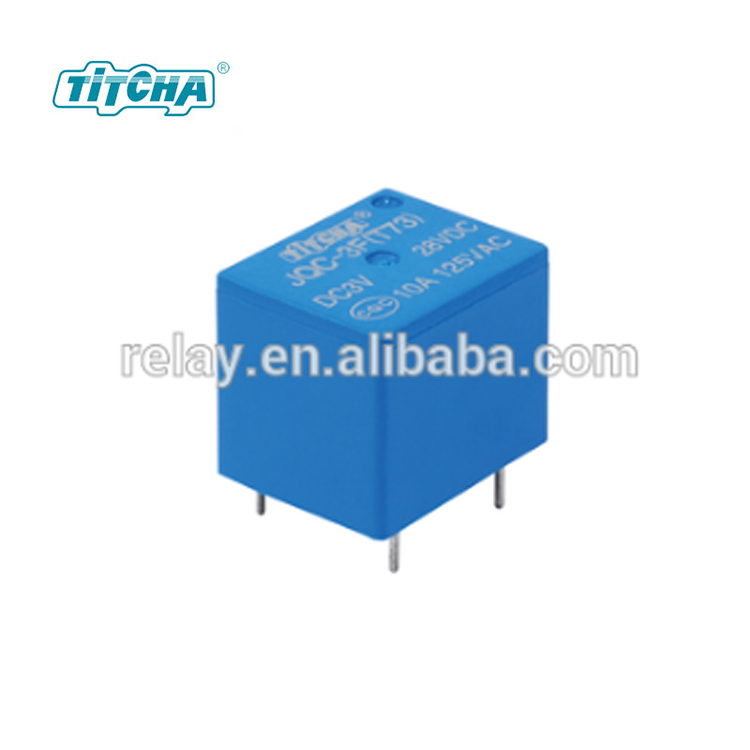

JQC-3F (T73) Miniature Electromagnetic Relays 220v electromagnet 12 volts / jqc-3f (t73) pcb relay
JQC-3F (T73)
Delivery
FOB
minimum order
1000 pieces
Supply Ability
10000.0pieces / Month
Country of Origin
Ningbo / Shanghai
Type
Quantity
- Coil nominal voltage:DC 3 to 48V
- Electrical life:10^5 OPS
- Mechanical life:10^7 OPS
- Operating temperature:-55~85
- Weight:≤10g
- Certificate:CE
- Theory:Electromagnetic Relay
- Usage:General Purpose
- Size:Miniature
- Protect Feature:Epoxy
- Contact Load:Low Power
- Place of Origin:CN;ZHE
- Brand Name:Titcha
- Model Number:JQC-3F (T73)
Miniature electromagnetic relay
Miniature electromagnetic relay
Miniature electromagnetic relay
Miniature electromagnetic relay
Miniature electromagnetic relay
Miniature electromagnetic relay
Miniature electromagnetic relay
Size:19.2×15.5×15.4
Tirminal layout: 2Z,2H
Contact capacity: 0.5A 120VAC/1A 28VDC/2A 28VDC
Contact resistance:≤50mΩ
Inulation resistance:≥100MΩ
Dielectric strength: BOC 1000VAC/BCC 1500VAC
---Technical Parameter ---
| Model | JRC-19(4078) | JQC-3F(T73) | JZC-23F(4123) | JQC-8F(T76) |
| Coil nominal voltage | DC 3 to 48V | DC 3 to 48V | DC 3 to 48V | DC 3 to 48V |
| Coil nominal power | DC≤0.36W | DC≤0.36W | DC≤0.36W | DC≤0.36W |
| Electrical life | 105OPS | 105OPS | 105OPS | 105OPS |
| Mechanical life | 106OPS | 106OPS | 106OPS | 106OPS |
| Operating temperature | -25~55 | -55~85 | -40~55 | -40~45 |
| Weight | ≤5g | ≤10g | ≤10g | ≤11g |
| Mounting methods | Printed-circuit board | Printed-circuit board | Printed-circuit board | Printed-circuit board |
