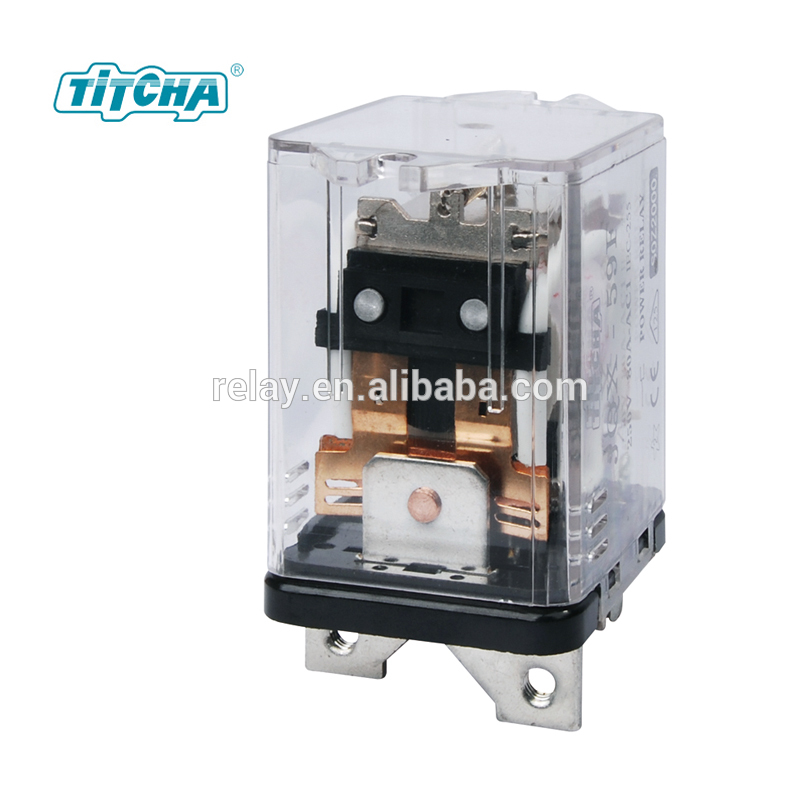

80A 28VPC/80A Contact capacity inexpensive 12v power operated relay
JQX-59F
Delivery
FOB
minimum order
500 pieces
Supply Ability
100.0pieces / Week
Country of Origin
Ningbo / Shanghai
Type
Quantity
- Certificate:CE
- Theory:Power Relay
- Usage:General Purpose
- Size:Miniature
- Protect Feature:Sealed
- Contact Load:High Power
- Place of Origin:CN;ZHE
- Brand Name:Titcha
- Model Number:JQX-59F

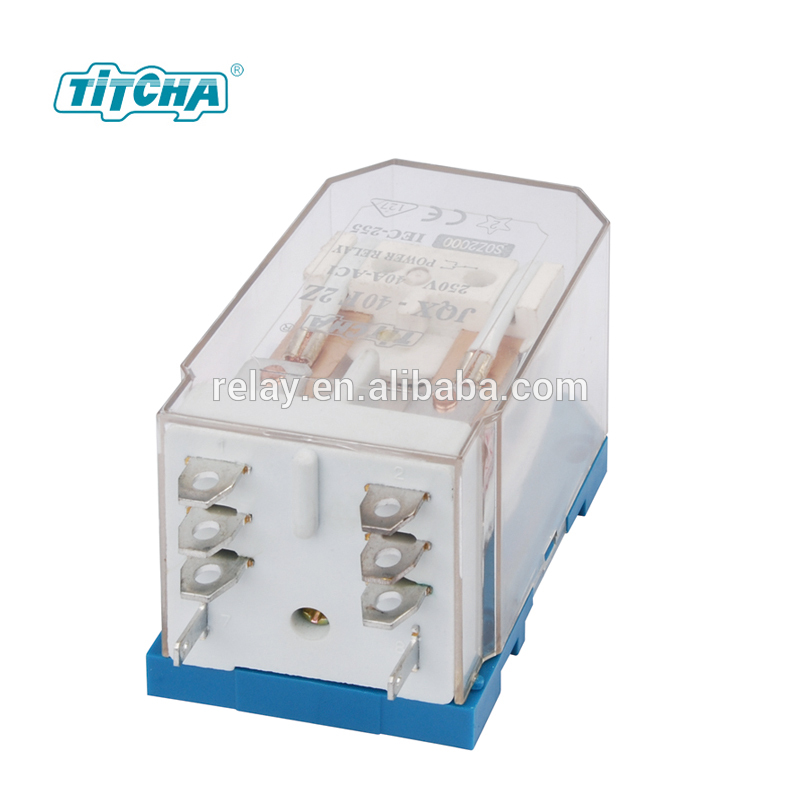

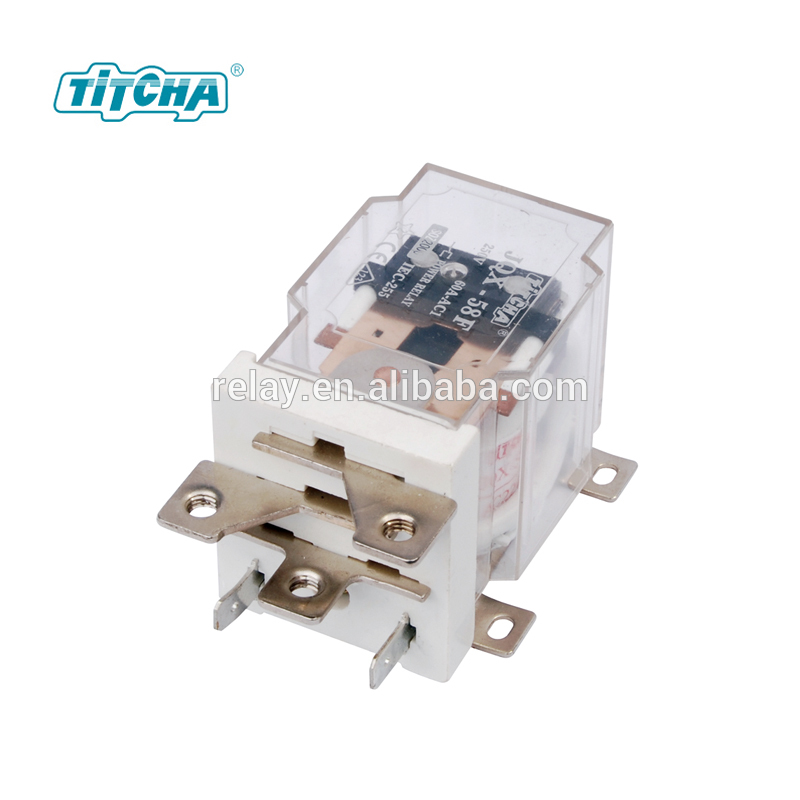

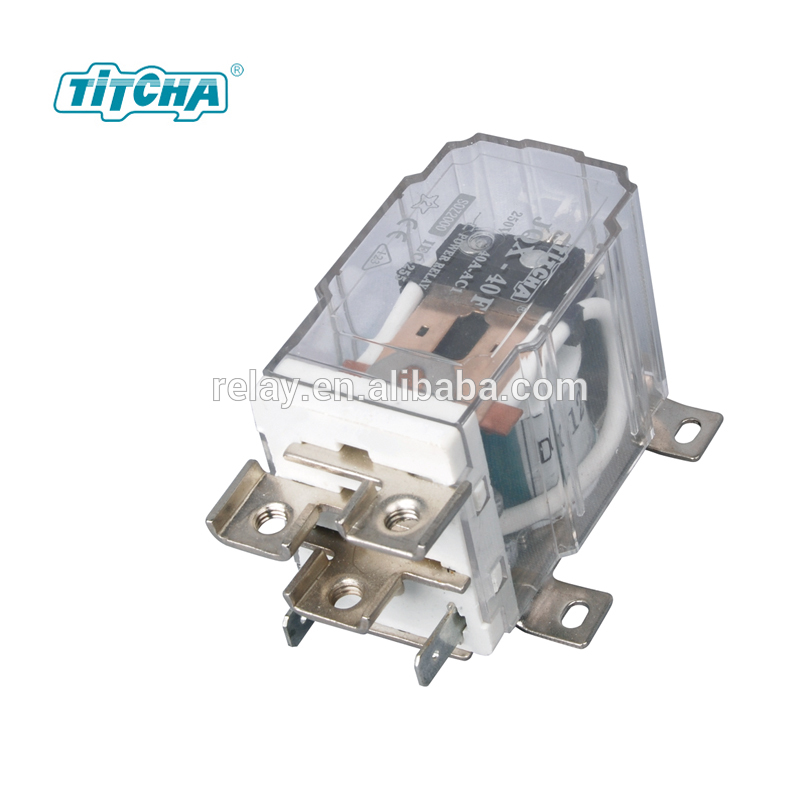

- Power relay
Power relay
Power relay
Power relay
Power relay
Power relay
Size(mm): 46.2 * 51 * 79.5
Tirminal layout: 1Z,1H,1D
Contact capacity: 80A 28VPC/80A 220VAC
Contact resistance: ≤50mΩ
Inulation resistance: ≥1000MΩ
Dielectric strength: BOC 1500VAC/BCC 2500VAC
Model | JQX-52F-1Z | JQC-58F-1Z | JQC-59F-1Z | JQC-60F-1Z |
Coil nominal voltage | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V |
AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | |
Coil nominal power | DC≤2.8W | DC≤3W | DC≤3.5W | DC≤3W |
AC≤4.2VA | AC≤4.2VA | AC≤6VA | AC≤4.5VA | |
Electrical life | 105OPS | 105OPS | 105OPS | 105OPS |
Mechanical life | 106OPS | 106OPS | 106OPS | 107OPS |
Operating temperature | -40~55 | -40~70 | -45~55 | -40~+55 |
Weight | ≤150g | ≤191g | ≤233g | ≤187g |
Mounting methods | Scfrew Mounting | Scfrew Mounting | Scfrew Mounting | Scfrew Mounting |
