LY2 8pin 10A AC220V DC24V with/without LED general purpose relay
LY2
Delivery
FOB
minimum order
500 pieces
Supply Ability
1000.0pieces / Week
Country of Origin
Ningbo/Shanghai
Type
Quantity
LY2 8pin 10A AC220V DC24V with/without LED general purpose relay

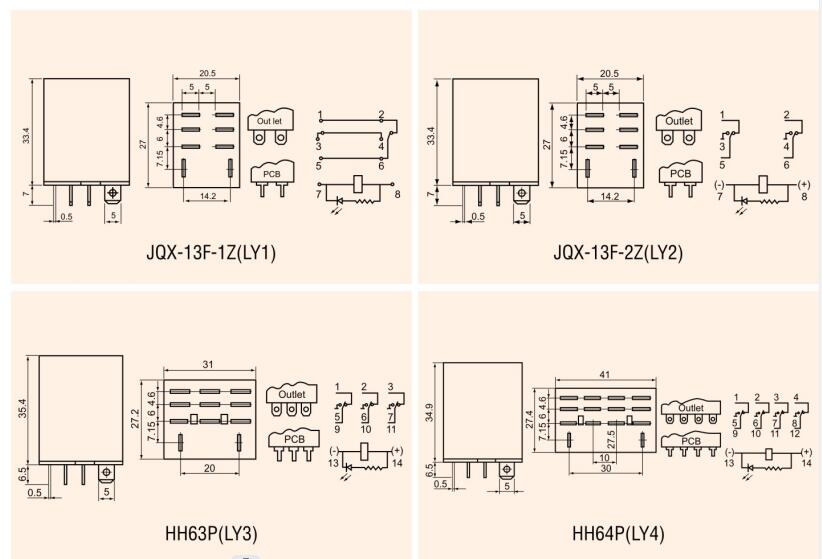

Model | LY2 | LY3 | LY4 |
Coil rated voltage | DC 6 to 220V | DC 6 to 220V | DC 6 to 220V |
AC 6 to 380V | AC 6 to 380V | AC 6 to 380V | |
Coil rated power | DC≤0.9W | DC≤0.9W | DC≤0.9W |
AC≤1.2VA | AC≤1.2VA | AC≤1.2VA | |
Electrical Life | 100000 OPS | 100000 OPS | 100000 OPS |
Mechanical life | 10000000 OPS | 10000000 OPS | 10000000 OPS |
Operating temperature | -25°C~55°C | -25°C~55°C | -25°C~55°C |
Weight | ≤34g | ≤49g | ≤69g |
Mounting methods | Printed Circuit board Flange,outlet | Printed Circuit board Flange,outlet | Printed Circuit board Flange,outlet |
| Contacting rating | 2Z | 3Z | 4Z |
| Contact resistance | 100m Ω （1A 6VDC） | 100m Ω （1A 6VDC） | 100m Ω （1A 6VDC） |
| Contact capacity | 10A/ 250VAC 30VDC | 10A/ 250VAC 30VDC | 10A/ 250VAC 30VDC |
| Insulation resistance | 500M Ω （500VDC） | ||
| Dialectric strength | BCC ≥ 1500VAC 1min | ||
| BOC ≥ 1000VAC 1min | |||
| COC ≥ 1500VAC 1min | |||
| Operate time | 25ms/15ms | ||
